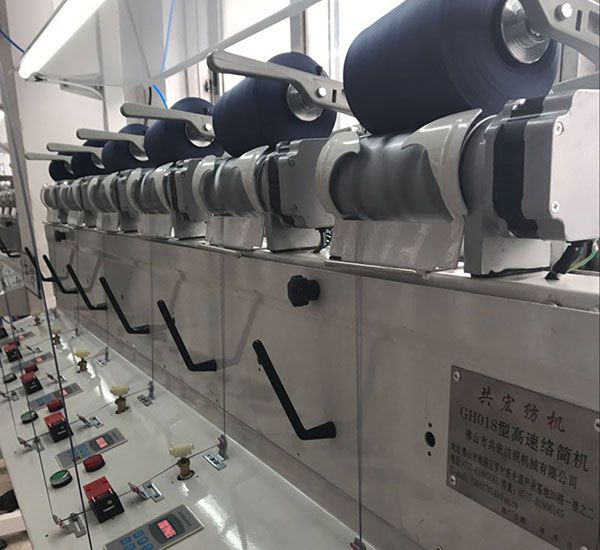

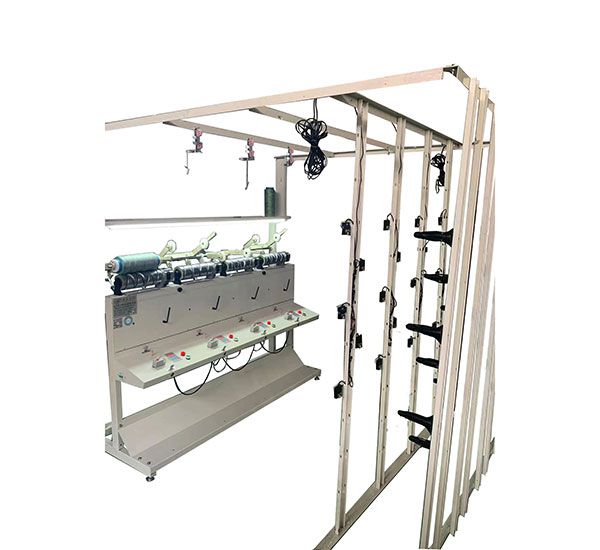

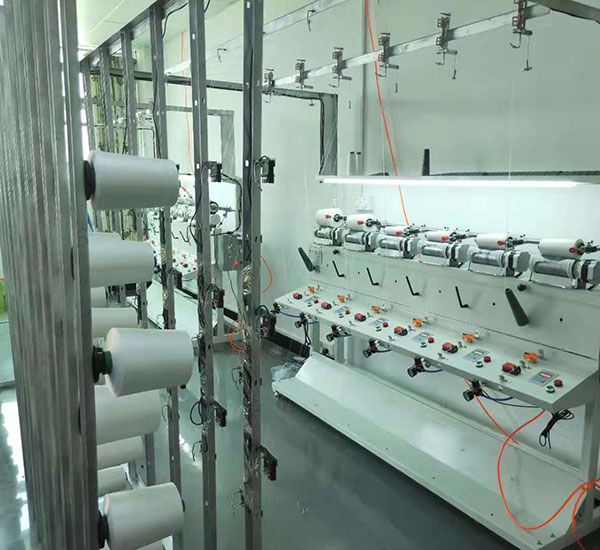

GH018-E High Speed Multi-Ply Yarn Winding Machine

GH018-E High Speed Multi-Ply Yarn Winding Machine
GH018-E High Speed Multi-Ply Yarn Winding Machine GH018-E High Speed Multi-Ply Yarn Winding Machine GH018-E High Speed Multi-Ply Yarn Winding Machine

GH018-E High Speed Multi-Ply Yarn Winding Machine

  • Cones
    Cones

    for a conical package shape

  • Tubes
    Tubes

    for cops that are the most flexible base for a wide range of package shapes (e.g.: cylindrical - no taper / biconical - double taper / single taper / bottle shape), depending on the winding unit (type of winding)

  • ST
    Sewing yarn

    Sewing yarns are especially made to pass rapidly through a sewing machine. They are a fine cord of a fibrous material, which are made of two or more filaments twisted together. The yarns form efficient stitches without breaking or becoming distorted.

  • Spun yarn
    Staple spun yarn

    Textile yarn spun twisted from staple length fiber, either natural or synthetic.

  • Filament Yarn
    Filament yarn

    Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

  • CO
    Cotton

    Natural fibre from the cotton plant which is spun into fine yarn.

  • PET / PES
    Polyester

    Synthetic fiber made from a thermoplastic polymer that contains the ester functional group in their main chain. Most commonly refers to a type called polyethylene terephthalate (PET) or polyethylene succinate (PES) with a melting point from 103 - 106°C.

  • PP
    Polypropylene (PP)

    Polypropylene is a thermoplastic polymer used in a wide variety of applications including packaging and labeling, textiles (e.g., ropes, thermal underwear and carpets), stationery, plastic parts and reusable containers of various types, laboratory equipment, loudspeakers, automotive components, and polymer banknotes. It’s an addition polymer made from the monomer propylene, which is rugged and unusually resistant to many chemical solvents, bases and acids.

  • AR
    Aramid

    Aramid is the short term for aromatic polyamide. They are fibres, in which the chain molecules are highly oriented along the fibre axis, so the strength of the chemical bond can be exploited. The fibre is heat-resistant and of great strength. Aramid is used in materials for bulletproof vests and radial tires.

  • CV
    Viscose

    Viscose, formerly known as viscose rayon, is made by treating cellulose with caustic alkali solution and carbon disulphide. It is a soft fibre commonly used in dresses, linings, shirts, shorts, coats, jackets, and other outerwear.

  • TY
    Technical Yarns

    The yarns are used for technical textile products, which are manufactured for non-aesthetic purposes. The function such as rigidity, strength, dimension stability, design flexibility and economic viability is main feature.

GH018-E high speed multi-ply yarn winding machine adopts high-tech integrated electrical control system and modular design to ensure better performance, stability, reliability and high speed. It can be used to wind 5-10 ply of fiber yarns, cotton yarns, wool yarns, FDY, hemp yarns, polyester yarns and blended yarns. The winded packages can be used for next weaving process without a shuttle loom. The machine features high efficiency, good shape formation, reduced labor intensity for next process. The nozzle screen is optional.

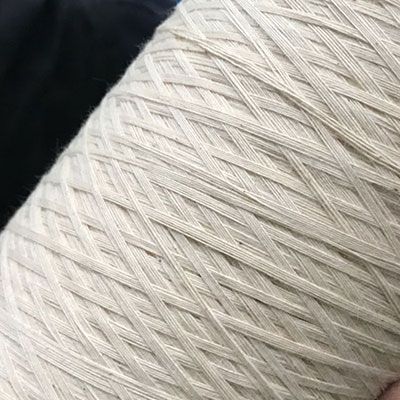

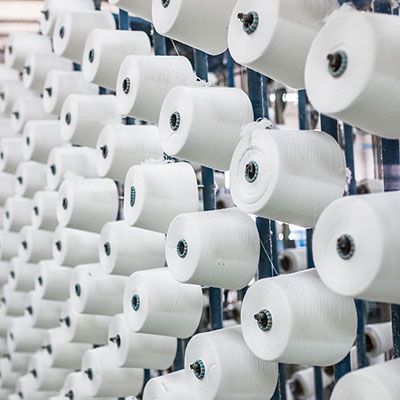

  • Samples
  • Samples
Request a Quote
Technical Parameters
Number of spindles per section/min./max. 4/4/48
Spindle gauge 420mm (customizable)
Number of yarn strand 5-10 (customizable)
Anti-patterning device Inverter controlled
Yarn count range Ne8-120
Drive Frequency control, individual motor drive per spindle
Installed power 60W/spindle, max.: 60W×96
Length counter One set per spindle
Yarn detector Photoelectric sensor, yarn breaking auto-stop
Yarn cutter When broken yarn is detected, the machine automatically stops and fix the yarn.
Tension controller Tension plate
Take-up tubes Conic or cylindrical tube
Doubling drum Zinc alloy grooved drum
Dimensions 2098×800×1550mm (6 spindles)
Lighting system Lamp
Air splicer Optional
Vacuum cleaner/Blower Optional
Main features
  • The electrical system is high integrated and controlled centrally.
  • Modular design: each spindle is individually controlled by independent motor, offering easy installation and operation.
  • Electronic length counter, full-bobbin auto-stop, length counter per spindle, independent control per spindle, memory function.
  • Photo-electronic yarn detector is not influenced by the yarn type, yarn count and temperature.
  • Winding speed features frequency control, with a maximum winding speed of 500 m/min.
  • Simple and reasonable yarn path ensures uniform and consistent winding tension.
