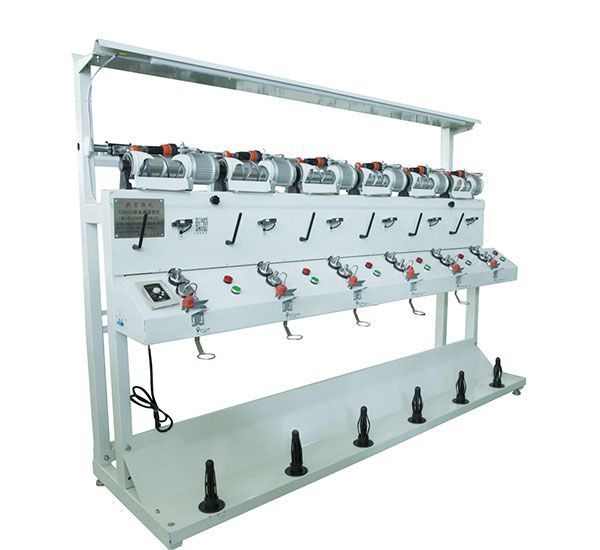

GH018-A High-Speed Yarn Cone To Cone Rewinding Machine is used to wind chemical fiber yarns, cotton yarns, filament yarns and low stretch yarns into cylindrical or conic packages for next process. The final package has a good shape formation without expanding the edge. The machine is helpful to reduce the labor intensity for next process and suitable for high speed production. It can be used for lace machine, knitting machine, warping machine, hosiery machine and so on.
Waxing device, automatic rotating and yarn breaking auto-stop ensure the amount of waxing so as to obtain the best winding effect. It is an ideal machine for winding cotton yarns, hemp yarns and chemical fiber yarns.

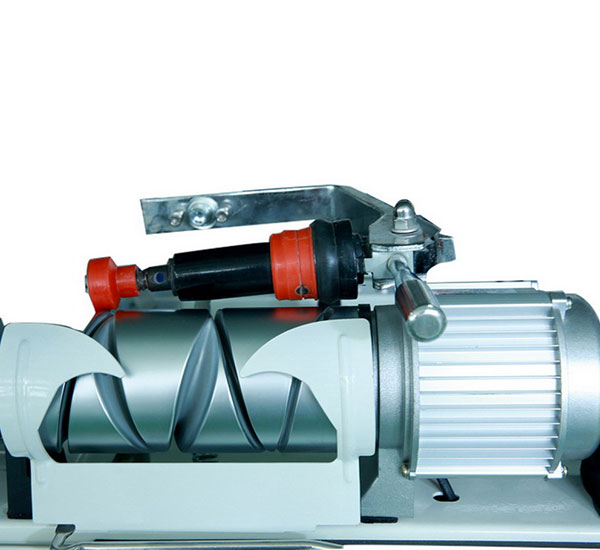

Grooved drum | O/D 82mm, 2.5 (turns) ×147, angle: 0° |
Take-up tubes | Cylindrical or cones with conicity of 3°30′, 4 °20′ |
Bobbin length | Standard 170mm, customized range: 170-280mm |
Electric waxing device | Square wax piece is used for uniform waxing, a set per spindle |
Slow start | Ensures a slow and stable start to improve the winding quality. |
Counterweight yarn brake | Prevent the yarn from shaking during the feeding to provide suitable winding tension. |
Electronic tensioner | Tension plate |
Number of spindles per section | 6 |
Number of spindles, max. | 120 |
Drive | Individual variable frequency motor per spindle, max. 60 spindles per row |
Max. winding linear speed | 1100 m/min, individually controlled per section, frequency control |
Traverse | Standard: 147mm |
Creel balancer | Winding tension is controlled by a spring balancer |
Yarn detector | Photoelectric sensor |
Package diameter | Max. 170mm |
Start/stop | Membrane switch control, touch screen |
Vertical anti-patterning device | Computer controlled |
Power consumption | 60W/spindle (at highest speed), including the power of cleaner motor |
Power supply | 3-phase 380V 10%, 50/60Hz, 220V, 440V |
Weight | 350kg (12 spindles) |
Dimension | 2250mm (L)×1100mm(W)×1400mm(H) (12 spindles) |
Cleaner weight | 132 kg, depending on the number of spindles |
Weight and size of electric box | 45kg 700mm(L)×300mm(W)×1320mm(H) |
Vacuum cleaner/blower | Optional, 1100W (cleaning power) |
Air splicer | Optional |
