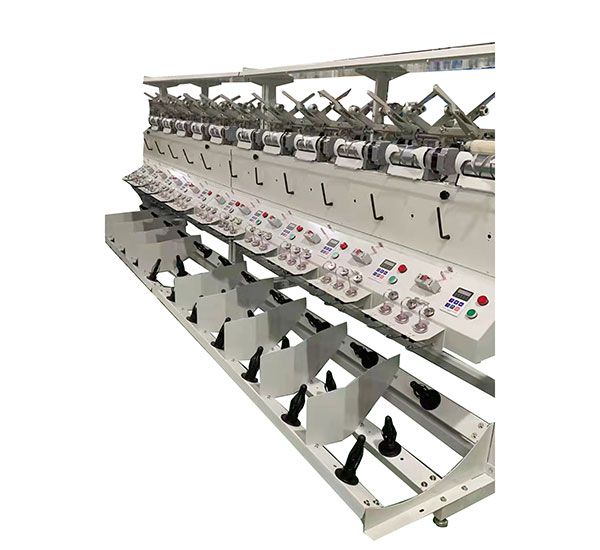

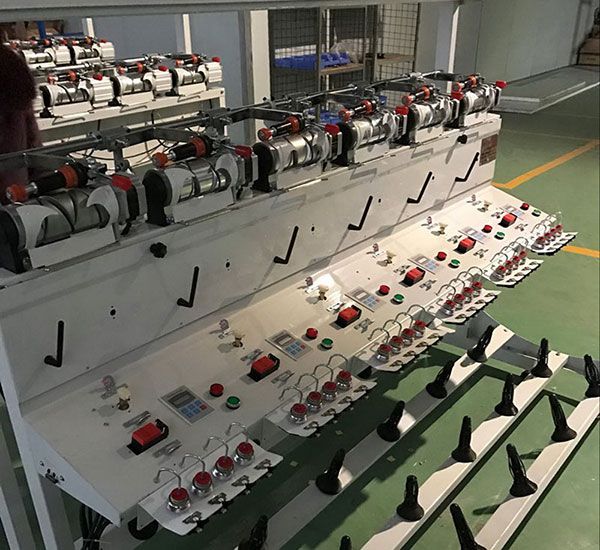

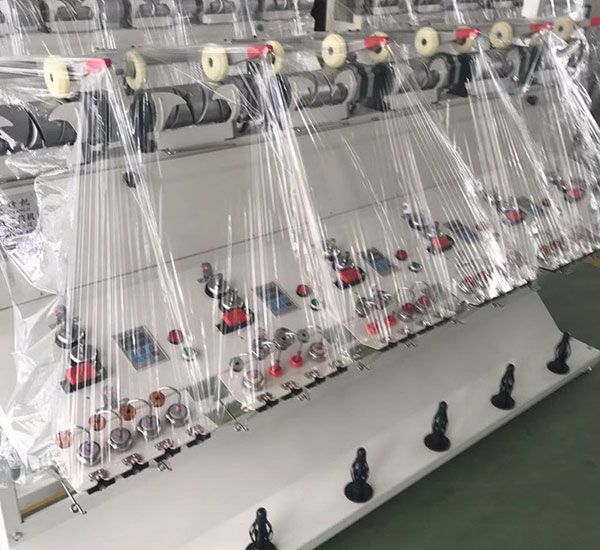

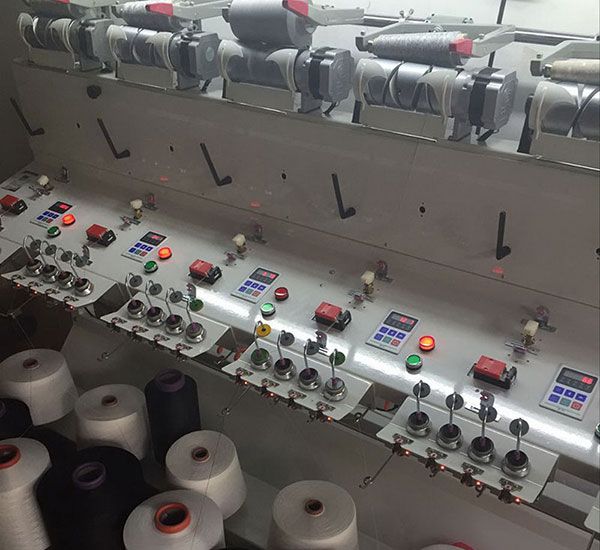

GH018-G High Speed Yarn Doubling Winding Machine

GH018-G High Speed Yarn Doubling Winding Machine
GH018-G High Speed Yarn Doubling Winding Machine GH018-G High Speed Yarn Doubling Winding Machine GH018-G High Speed Yarn Doubling Winding Machine GH018-G High Speed Yarn Doubling Winding Machine

GH018-G High Speed Yarn Doubling Winding Machine

  • Cones
    Cones

    for a conical package shape

  • Tubes
    Tubes

    for cops that are the most flexible base for a wide range of package shapes (e.g.: cylindrical - no taper / biconical - double taper / single taper / bottle shape), depending on the winding unit (type of winding)

  • ST
    Sewing yarn

    Sewing yarns are especially made to pass rapidly through a sewing machine. They are a fine cord of a fibrous material, which are made of two or more filaments twisted together. The yarns form efficient stitches without breaking or becoming distorted.

  • Spun yarn
    Staple spun yarn

    Textile yarn spun twisted from staple length fiber, either natural or synthetic.

  • Filament Yarn
    Filament yarn

    Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

  • CO
    Cotton

    Natural fibre from the cotton plant which is spun into fine yarn.

  • PET / PES
    Polyester

    Synthetic fiber made from a thermoplastic polymer that contains the ester functional group in their main chain. Most commonly refers to a type called polyethylene terephthalate (PET) or polyethylene succinate (PES) with a melting point from 103 - 106°C.

  • PP
    Polypropylene (PP)

    Polypropylene is a thermoplastic polymer used in a wide variety of applications including packaging and labeling, textiles (e.g., ropes, thermal underwear and carpets), stationery, plastic parts and reusable containers of various types, laboratory equipment, loudspeakers, automotive components, and polymer banknotes. It’s an addition polymer made from the monomer propylene, which is rugged and unusually resistant to many chemical solvents, bases and acids.

  • AR
    Aramid

    Aramid is the short term for aromatic polyamide. They are fibres, in which the chain molecules are highly oriented along the fibre axis, so the strength of the chemical bond can be exploited. The fibre is heat-resistant and of great strength. Aramid is used in materials for bulletproof vests and radial tires.

  • CV
    Viscose

    Viscose, formerly known as viscose rayon, is made by treating cellulose with caustic alkali solution and carbon disulphide. It is a soft fibre commonly used in dresses, linings, shirts, shorts, coats, jackets, and other outerwear.

  • TY
    Technical Yarns

    The yarns are used for technical textile products, which are manufactured for non-aesthetic purposes. The function such as rigidity, strength, dimension stability, design flexibility and economic viability is main feature.

GH018-G high speed yarn doubling winding machine is used to wind 2-4 strands of chemical fiber yarns, cotton yarns, wool yarns, FDY, hemp yarns, polyester yarns and so on. The final package can be connected with next process for twisting process, or directly used for weaving process without a shuttle loom.
Integrated electrical control system and modular design enables the machine of stable and reliable performance, high efficiency, good shape formation of final package and reduced labor intensity for next process. The nozzle screen is optional.

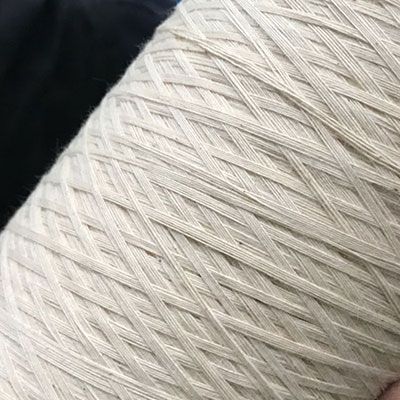

  • Samples
Request a Quote
Technical Parameters
Number of spindles 6-96, 6 per section
Spindle gauge 280mm
Number of yarn strand 2-4 plys (generally 2-3ply)
Anti-patterning device Inverter control
Yarn count range Ne8-120
Drive Frequency control, individual motor per spindle
Installed power 60W/spindle, max.: 60W×96
Length counter Each spindle is installed with a length counter
Yarn detector Photoelectric sensor
Take-up tubes Conic or cylindrical shape
Doubling drum Zinc alloy
Dimension 2098×800×1550mm (6 spindles)
Lighting system Lamp
Air splicer Optional
Blower cleaner Optional
Main features
  • Drive: each spindle is driven by an individual AC motor.
  • Winding speed is adjustable within 300-800m/min.
  • Each spindle is installed with an auto-stop device and it will automatically stop when yarn breaks.
  • Each spindle is equipped with a length counter.
