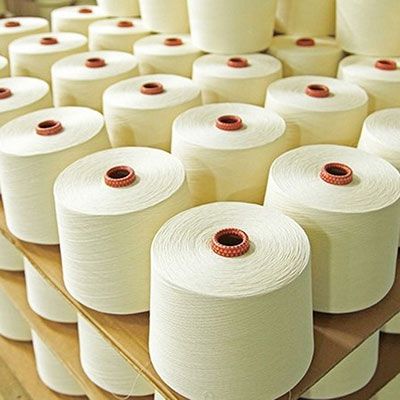

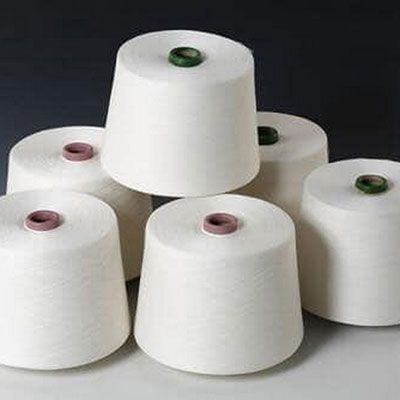

for a conical package shape
for cops that are the most flexible base for a wide range of package shapes (e.g.: cylindrical - no taper / biconical - double taper / single taper / bottle shape), depending on the winding unit (type of winding)
Sewing yarns are especially made to pass rapidly through a sewing machine. They are a fine cord of a fibrous material, which are made of two or more filaments twisted together. The yarns form efficient stitches without breaking or becoming distorted.
Textile yarn spun twisted from staple length fiber, either natural or synthetic.
Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.
Natural fibre from the cotton plant which is spun into fine yarn.
Synthetic fiber made from a thermoplastic polymer that contains the ester functional group in their main chain. Most commonly refers to a type called polyethylene terephthalate (PET) or polyethylene succinate (PES) with a melting point from 103 - 106°C.
Polypropylene is a thermoplastic polymer used in a wide variety of applications including packaging and labeling, textiles (e.g., ropes, thermal underwear and carpets), stationery, plastic parts and reusable containers of various types, laboratory equipment, loudspeakers, automotive components, and polymer banknotes. It’s an addition polymer made from the monomer propylene, which is rugged and unusually resistant to many chemical solvents, bases and acids.
Aramid is the short term for aromatic polyamide. They are fibres, in which the chain molecules are highly oriented along the fibre axis, so the strength of the chemical bond can be exploited. The fibre is heat-resistant and of great strength. Aramid is used in materials for bulletproof vests and radial tires.
Viscose, formerly known as viscose rayon, is made by treating cellulose with caustic alkali solution and carbon disulphide. It is a soft fibre commonly used in dresses, linings, shirts, shorts, coats, jackets, and other outerwear.
The yarns are used for technical textile products, which are manufactured for non-aesthetic purposes. The function such as rigidity, strength, dimension stability, design flexibility and economic viability is main feature.

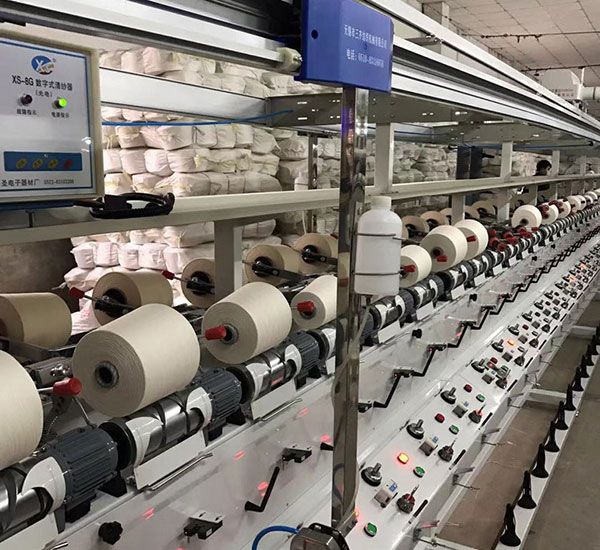

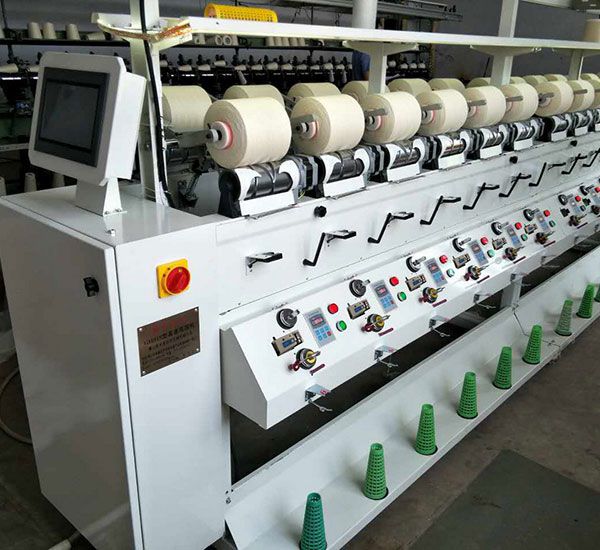

GH018-T textile special electric clean winding machine is used to wind yarns from cone to cone, and produce hard packages for knitting machine, shuttle loom, warping machine and hosiery machine. It is an ideal winding machine for cotton threads, hemp threads and chemical fiber yarns. Advanced yarn cleaning, tension control device and photoelectric yarn detecting device are installed on this machine to avoid the yarn loop. The winding speed can be set and controlled automatically by the computer, offering a maximum speed of 1100 m/min.
| Grooved drum | O/D 82mm, lead 2.5 (turns)×147, angle: 0° |
| Take-up tubes | Cylindrical shape/cones with a conicity of 3°30′,4°20′,5°57′ |
| Bobbin length | Standard 170mm, customized range: 170-280mm |
| Yarn length control | Electronically set the winding yarn length up to 999999 m according to the final package. |
| Electric waxing device | Square wax piece is used for uniform waxing, a set per spindle |
| Slow start | Ensures a slow and stable start to improve the winding quality. |
| Counterweight yarn brake | Prevent the yarn from shaking during the feeding to provide suitable winding tension. |
| Electronic tensioner | Adjust the clearing gap |
| Number of spindles per section | 12 |
| Number of spindles, max. | 120 |
| Drive | Individual long shaft variable frequency motor per spindle, max. 60 spindles per row, controlled by one frequency convertor |
| Max. winding linear speed | 1100 m/min |
| Traverse | Standard: 147mm |
| Creel balancer | Winding tension is controlled by a spring balancer |
| Yarn detector | Photoelectric sensor |
| Package diameter | Up to 250mm |

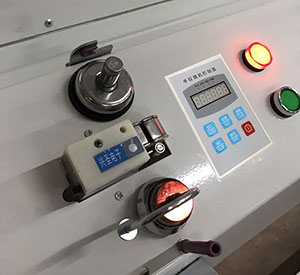

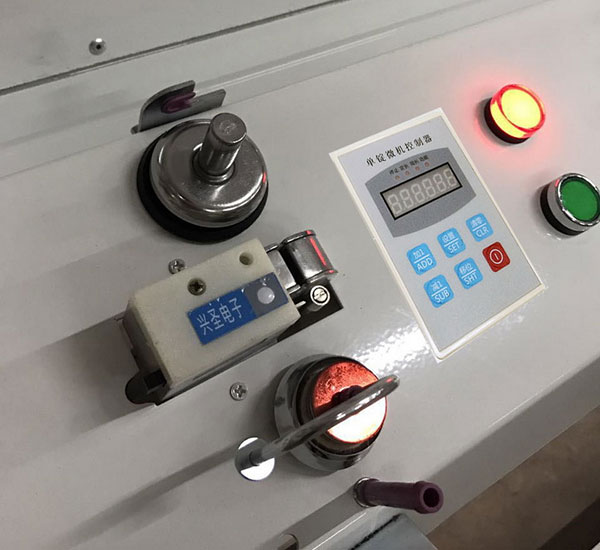

| Start/Stop | Membrane switch control, touch screen |
| Vertical anti-patterning device | Computer controlled |
| Vacuum cleaner/blower | Optional, 1100W (cleaning power) |
| Power consumption | 100W//spindle (at the highest speed), including the power of cleaner motor |
| Air splicer | Optional |
| Power supply | 3-phase 380V 10%, 50/60Hz, 220V, 440V |
| Weight (12 spindles) | 350kg |
| Dimension (12 spindles) | 2250mm (L)×1100mm(W)×1500mm(H) |
| Cleaner weight | 132 kg, depending on the number of spindles |
| Weight and dimension of the electricity box | 45kg, 700mm(L)×300mm(W)×1320mm(H) |
GONGHONG is focused on providing complete sets of high quality textile machines for global clients. With more than ten years of industry experience, our R&D team listens to and works with our customers to manufacture premium quality yarn winding machines so as to improve their productivity. The quality and high cost performance of our yarn winder are particularly praised by customers worldwide. Our professional service team will answer your doubts and make reasonable yarn winding solutions catering to your winding needs, as well as provide the best after-sales service. Based on our expertise in textile machinery, we are committed to continuously developing and producing high quality sewing thread winders catering to customer needs. As a reliable China yarn winding machine manufacturer, we are confident to provide you high quality machines with affordable prices.

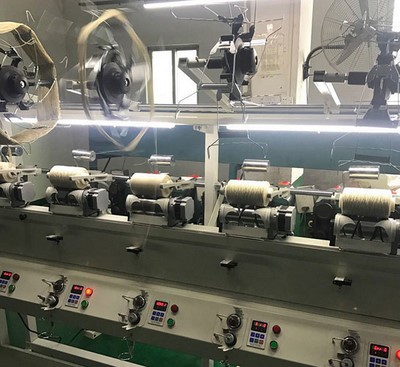

GH018-P High speed yarn hank to cone winding machine is used for winding yarns from hank to cone and it is applicable to the winding of chemical fiber, cotton yarns, filament yarns and low stretch yarns into conic or cylindrical packages for next process.
