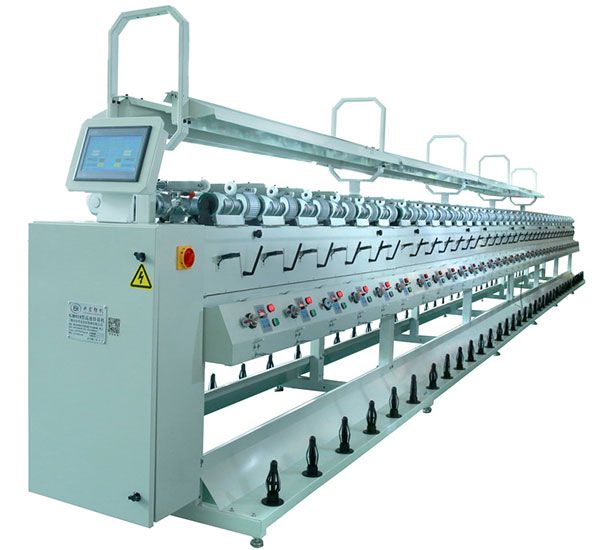

GH018-S High-Speed Soft Winding Machine

GH018-S High-Speed Soft Winding Machine
GH018-S High-Speed Soft Winding Machine GH018-S High-Speed Soft Winding Machine GH018-S High-Speed Soft Winding Machine GH018-S High-Speed Soft Winding Machine GH018-S High-Speed Soft Winding Machine

GH018-S High-Speed Soft Winding Machine

  • Cones
    Cones

    for a conical package shape

  • Tubes
    Tubes

    for cops that are the most flexible base for a wide range of package shapes (e.g.: cylindrical - no taper / biconical - double taper / single taper / bottle shape), depending on the winding unit (type of winding)

  • ST
    Sewing yarn

    Sewing yarns are especially made to pass rapidly through a sewing machine. They are a fine cord of a fibrous material, which are made of two or more filaments twisted together. The yarns form efficient stitches without breaking or becoming distorted.

  • Spun yarn
    Staple spun yarn

    Textile yarn spun twisted from staple length fiber, either natural or synthetic.

  • Filament Yarn
    Filament yarn

    Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

  • CO
    Cotton

    Natural fibre from the cotton plant which is spun into fine yarn.

  • PET / PES
    Polyester

    Synthetic fiber made from a thermoplastic polymer that contains the ester functional group in their main chain. Most commonly refers to a type called polyethylene terephthalate (PET) or polyethylene succinate (PES) with a melting point from 103 - 106°C.

  • PP
    Polypropylene (PP)

    Polypropylene is a thermoplastic polymer used in a wide variety of applications including packaging and labeling, textiles (e.g., ropes, thermal underwear and carpets), stationery, plastic parts and reusable containers of various types, laboratory equipment, loudspeakers, automotive components, and polymer banknotes. It’s an addition polymer made from the monomer propylene, which is rugged and unusually resistant to many chemical solvents, bases and acids.

  • AR
    Aramid

    Aramid is the short term for aromatic polyamide. They are fibres, in which the chain molecules are highly oriented along the fibre axis, so the strength of the chemical bond can be exploited. The fibre is heat-resistant and of great strength. Aramid is used in materials for bulletproof vests and radial tires.

  • CV
    Viscose

    Viscose, formerly known as viscose rayon, is made by treating cellulose with caustic alkali solution and carbon disulphide. It is a soft fibre commonly used in dresses, linings, shirts, shorts, coats, jackets, and other outerwear.

  • TY
    Technical Yarns

    The yarns are used for technical textile products, which are manufactured for non-aesthetic purposes. The function such as rigidity, strength, dimension stability, design flexibility and economic viability is main feature.

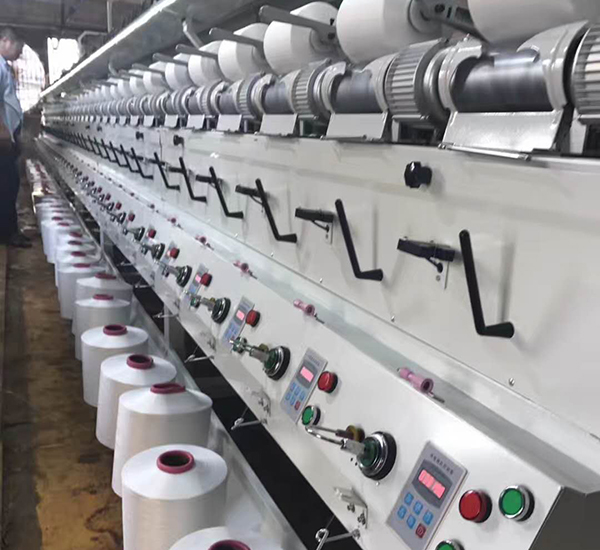

GH018-S high speed soft winding machine is used before dying to wind yarns from cones to cones and to achieve a soft winded package with a good density. The winding speed can be automatically controlled by the computer, with a max. speed up to 1100 m/min. It is an ideal winder for cotton, silk and chemical fiber yarns.

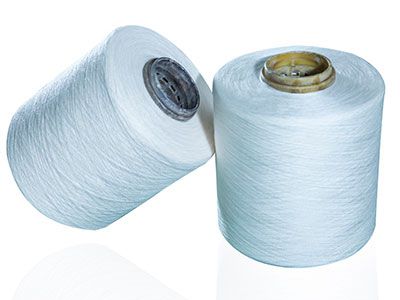

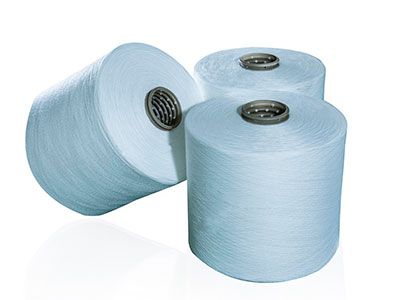

  • Samples
  • Samples
Request a Quote
Technical Parameters
Grooved drum O/D 82mm, lead 2.5(turns)×147, angle: 0°
Take-up tubes Cylindrical (0°)/cones with a conicity of 3°30′, 4 °20′
Bobbin length Standard 170mm, customized range: 170-280mm
Yarn length control Electronically set the winding yarn length up to 999999 m according to the final package.
Slow start Ensures a slow and stable start to improve the winding quality.
Counterweight yarn brake Prevent the yarn from shaking during the feeding to provide suitable winding tension.
Knot clearing adjuster Adjust the clearing gap
Electronic tensioner Tension plate
Number of spindles per section 12 per section
Number of spindles, max. 120
Drive Individual variable frequency motor per spindle
Max. winding linear speed 1100 m/min, individually controlled per section, frequency control
Traverse Standard: 147mm, 152mm
Creel balancer Winding tension is controlled by a spring balancer
Yarn detector Photoelectric sensor
Package diameter Max. 280mm
Start/Stop Membrane switch control, touch screen
Vertical anti-patterning device Computer controlled
Vacuum cleaner/blower Optional, 1100W (cleaning power)
Power consumption 60W/spindle (at the highest speed), including the power of cleaner motor
Power supply 3-phase 380V 10% , 50/60Hz;220V; 440V
Weight (12 spindles) 350kg
Dimension (12 spindles) 2250mm (L)×1100mm(W)×1400mm(H)
Cleaner weight 132 kg, depending on the number of spindles
Weight and dimension of the electricity box 45kg, 700mm(L)×300mm(W)×1320mm(H)
Main features
  • Advanced yarn cleaning, tension control device and photoelectric yarn detecting avoid the yarn loop.
  • Accurate and sensitive speed sensor ensures consistent winding length and package weight.
Advantages
  • Durable metal arbor support
  • Easy opening central positioning structure of the bobbin holder offers the ease of removal of the winded package.
  • Yarn inlet/outlet is equipped with ceramic protection to avoid affecting the yarn quality by friction.

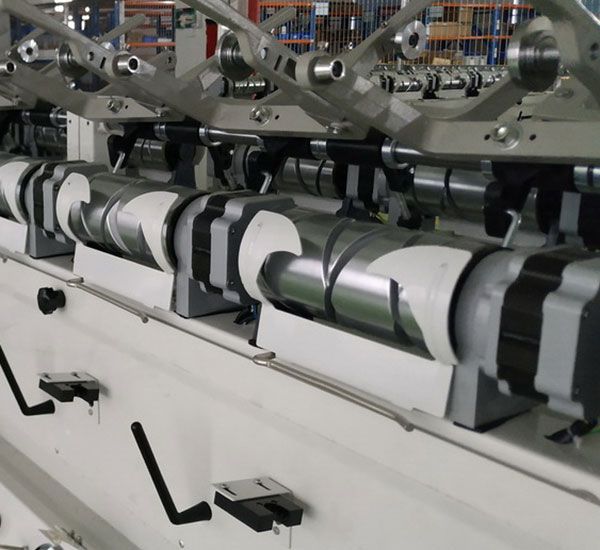

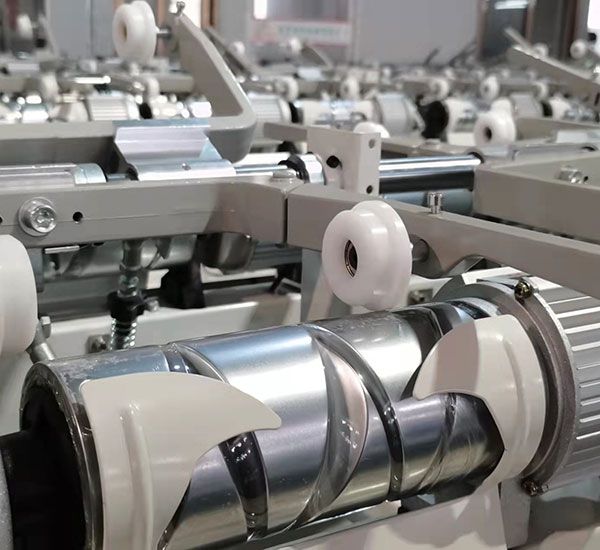

  • The grooved drum has dust-proof and anti-twisting device to avoid the dust accumulation and to protect the rolling bearing.
  • Double-sided spindle layout comes with 12 spindle per section. Maximum number of spindles is 120 pcs of 10 sections per machine.
  • Rotating pin and counterweight yarn brake offer flexible control of winding tension.
  • Spring holder pressure balancer ensures uniform winding density during the whole winding process.
  • Horizontal traverse soft edge device ensures even dying possible for soft packages.
  • Photoelectric length measuring device ensures the winding length of each spindle is accurately consistent.

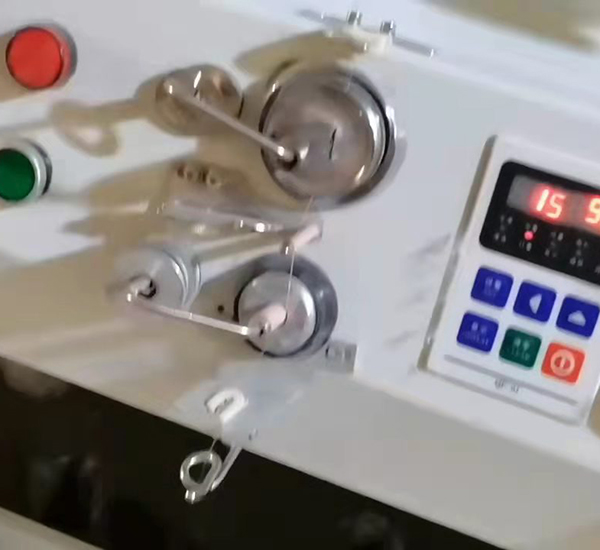

Details
  • Details
  • Details
  • Details
  • Details
Leave a Message

GONGHONG is focused on providing complete sets of high quality textile machines for global clients. With more than ten years of industry experience, our R&D team listens to and works with our customers to manufacture premium quality yarn winding machines so as to improve their productivity. The quality and high cost performance of our yarn winder are particularly praised by customers worldwide. Our professional service team will answer your doubts and make reasonable yarn winding solutions catering to your winding needs, as well as provide the best after-sales service. Based on our expertise in textile machinery, we are committed to continuously developing and producing high quality sewing thread winders catering to customer needs. As a reliable China yarn winding machine manufacturer, we are confident to provide you high quality machines with affordable prices.

Product Center
  • GH018 Fully Automatic Thread Winding Machine
  • GH019 Semi-automatic Thread Winding Machine
  • GH018-S High-Speed Soft Winding Machine
  • GH018-M High-Speed Hard Winding Machine
  • GH018-T Textile Special Electric Clean Winding Machine
  • GH018-P High Speed Yarn Hank To Cone Winding Machine
  • GH018-L High Speed Fully Drawn Yarn Thread Winding Machine
  • GH018-G High Speed Yarn Douling Winding Machine
  • GH018-E High Speed Multi-Ply Yarn Winding Machine
  • GH018-A High-Speed Yarn Cone To Cone Rewinding Machine
  • GH018-B High-Speed Yarn Cone To Cone Rewinder Machine
  • GH018-Z High-Speed Yarn Oiled Special Winding Machine
  • GH018-D 280 Type High Speed Large Package Winder
  • GH018-230 Type High Speed Yarn Bobbin Winding Machine
You May Also Like
  • GH018-M High-Speed Hard Winding Machine

    1. GH018-M High-Speed Hard Winding Machine
    2. GH018-M high-speed hard winding machine is used to produce hard cone packages for knitting machine, shuttle loom, warping machine and hosiery machine. It is an ideal winding machine for cotton threads, hemp threads and chemical fiber yarns.

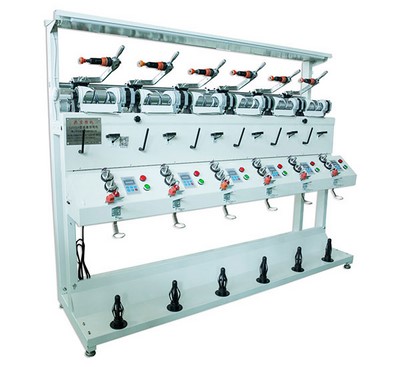

  • GH018-A High-Speed Yarn Cone To Cone Rewinding Machine

    1. GH018-A High-Speed Yarn Cone To Cone Rewinding Machine
    2. GH018-A High-Speed Yarn Cone To Cone Rewinding Machine is used to wind chemical fiber yarns, cotton yarns, filament yarns and low stretch yarns into cylindrical or conic packages for next process. The final package has a good shape formation without expanding the edge.

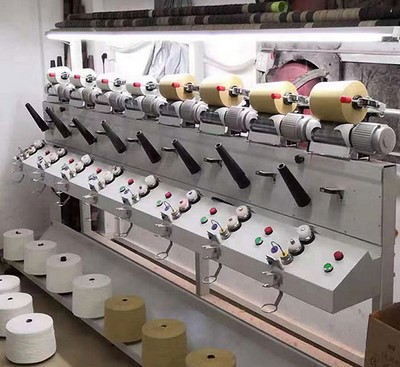

  • GH018-B High-Speed Yarn Cone To Cone Rewinder Machine
