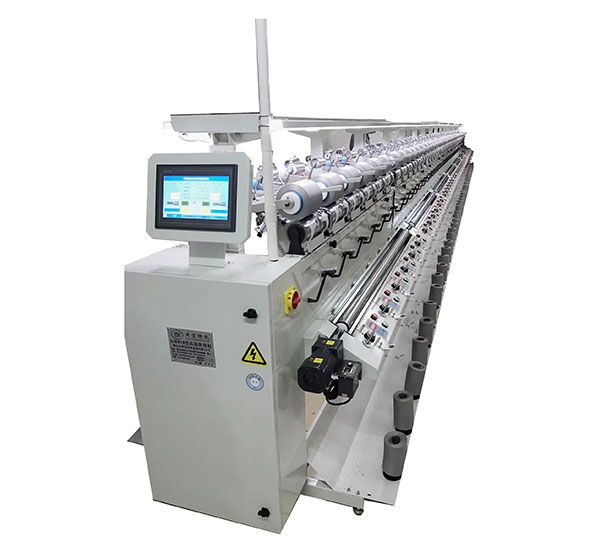

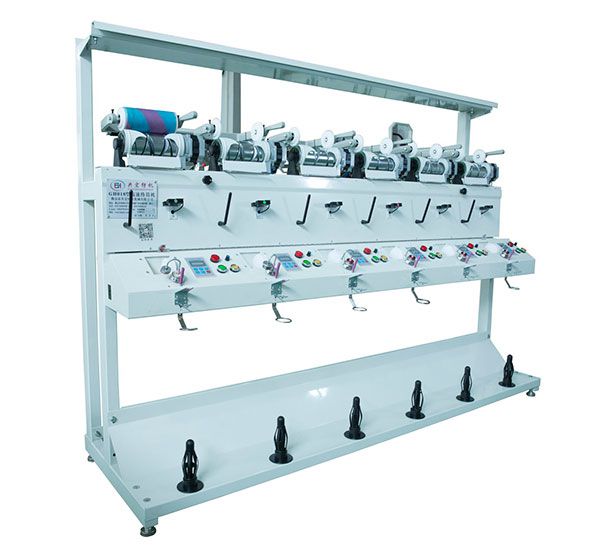

GH018-Z High-Speed Yarn Oiled Special Winding Machine

GH018-Z High-Speed Yarn Oiled Special Winding Machine
GH018-Z High-Speed Yarn Oiled Special Winding Machine GH018-Z High-Speed Yarn Oiled Special Winding Machine GH018-Z High-Speed Yarn Oiled Special Winding Machine

GH018-Z High-Speed Yarn Oiled Special Winding Machine

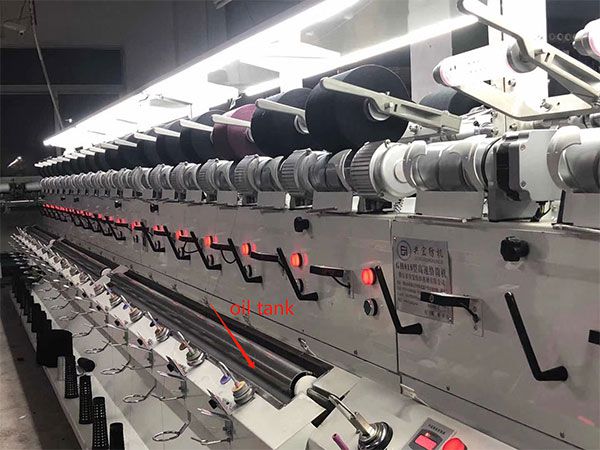

GH018-Z High-speed yarn oiled special winding machine is used to wind chemical fiber yarn, acrylic fibers, industrial filament, low stretch yarn and nylon threads into cylindrical or conic packages for next process. It adopts silicone oil for lubrication. This machine offers good shape formation without expanding the edge, high working efficiency, reduced labor intensity for next process, and high speed production.

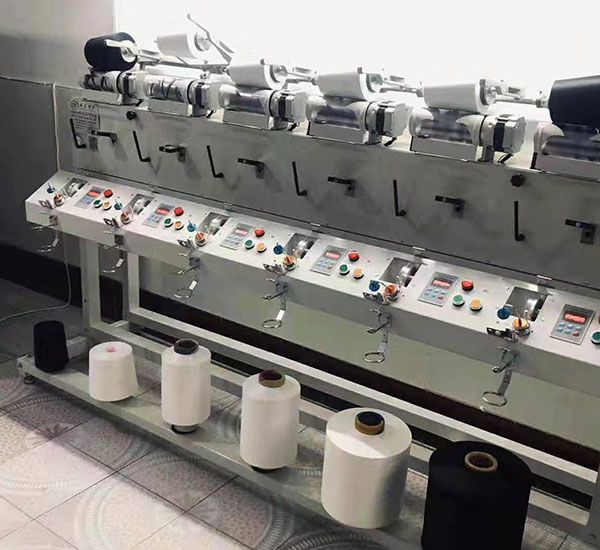

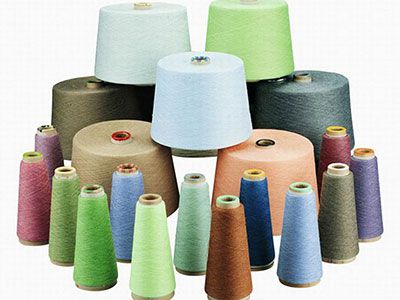

  • Samples
  • Samples
Request a Quote
Technical Parameters
Bobbin length Standard: 170mm, customizable range: 170-280mm
Layout/Number of spindles 6 spindles per section, double-sided/min. 12 spindles/max.96 spindles
Power supply Three-phase 380V50/60HZ
Drive Individual AC motor per spindle
Power consumption 90W/spindle
Take-up tubes Cylindrical (0°)/cones with a conicity of 4°20, 5°57, 9°15
Take-up package diameter Up to 200 or 230mm
Winding linear speed 300-1000 m/min
Electronic anti-patterning device Frequency control

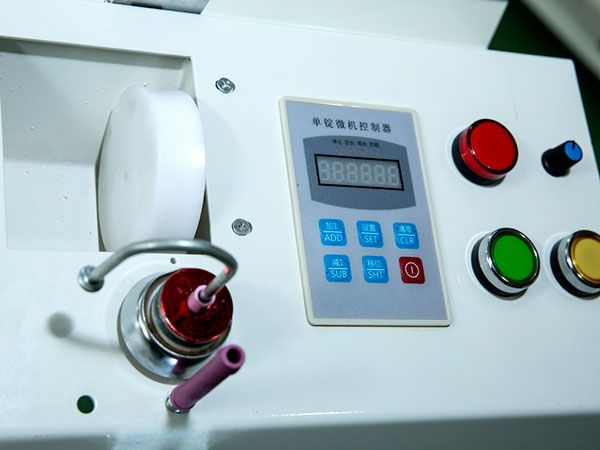

Length control device Centralized control by PLC, length displaying
Tension device Rotating self-clearing tensioner and waxing device per spindle
Mechanical yarn cleaning device Optional adjustable cleaning cutter per spindle
Yarn broken auto-stop Electronic auto-stop device
Speed controller Frequency control
Electronic yarn cleaning device Optional
Air splicer Optional
Lighting system Lamp
Dimensions 2050(L)×750(W)×1650(H)mm (6 spindles)

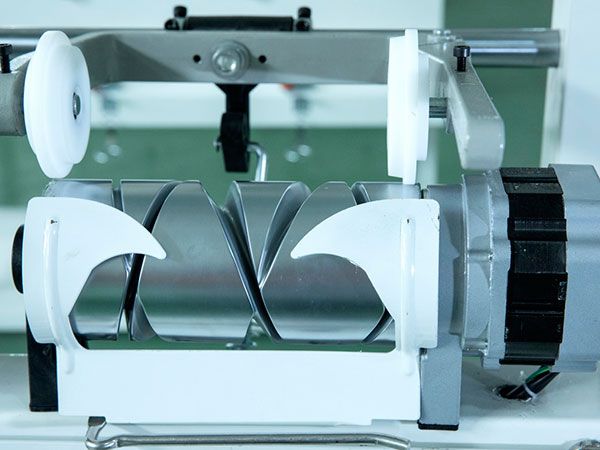

Details
  • Details
  • Details
  • Details
Leave a Message

GONGHONG is focused on providing complete sets of high quality textile machines for global clients. With more than ten years of industry experience, our R&D team listens to and works with our customers to manufacture premium quality yarn winding machines so as to improve their productivity. The quality and high cost performance of our yarn winder are particularly praised by customers worldwide. Our professional service team will answer your doubts and make reasonable yarn winding solutions catering to your winding needs, as well as provide the best after-sales service. Based on our expertise in textile machinery, we are committed to continuously developing and producing high quality sewing thread winders catering to customer needs. As a reliable China yarn winding machine manufacturer, we are confident to provide you high quality machines with affordable prices.

Product Center
  • GH018 Fully Automatic Thread Winding Machine
  • GH019 Semi-automatic Thread Winding Machine
  • GH018-S High-Speed Soft Winding Machine
  • GH018-M High-Speed Hard Winding Machine
  • GH018-T Textile Special Electric Clean Winding Machine
  • GH018-P High Speed Yarn Hank To Cone Winding Machine
  • GH018-L High Speed Fully Drawn Yarn Thread Winding Machine
  • GH018-G High Speed Yarn Douling Winding Machine
  • GH018-E High Speed Multi-Ply Yarn Winding Machine
  • GH018-A High-Speed Yarn Cone To Cone Rewinding Machine
  • GH018-B High-Speed Yarn Cone To Cone Rewinder Machine
  • GH018-Z High-Speed Yarn Oiled Special Winding Machine
  • GH018-D 280 Type High Speed Large Package Winder
  • GH018-230 Type High Speed Yarn Bobbin Winding Machine
You May Also Like

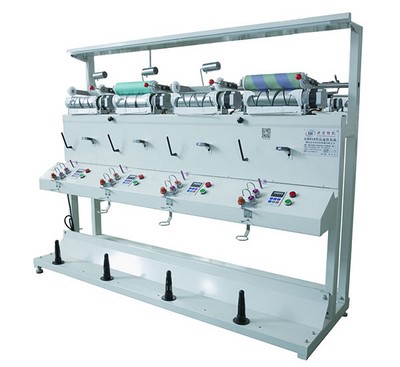

  • GH018-D 280 Type High Speed Large Package Winder
