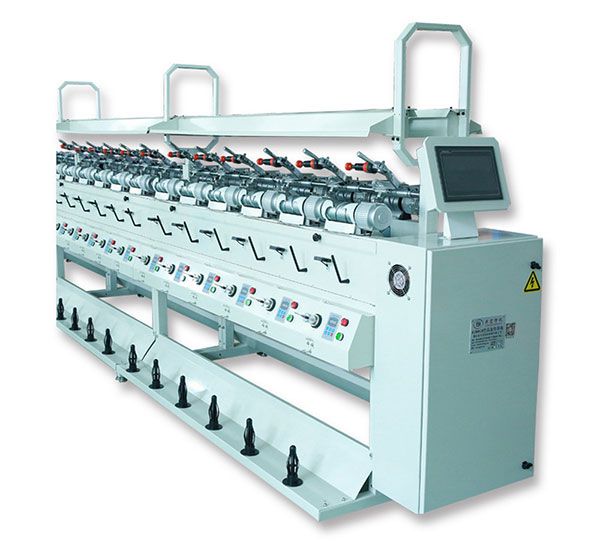

GH018-M High-Speed Hard Winding Machine

GH018-M High-Speed Hard Winding Machine
GH018-M High-Speed Hard Winding Machine GH018-M High-Speed Hard Winding Machine

GH018-M High-Speed Hard Winding Machine

GH018-M high-speed hard winding machine is used to produce hard cone packages for knitting machine, shuttle loom, warping machine and hosiery machine. It is an ideal winding machine for cotton threads, hemp threads and chemical fiber yarns.

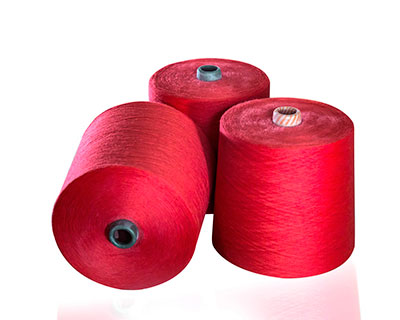

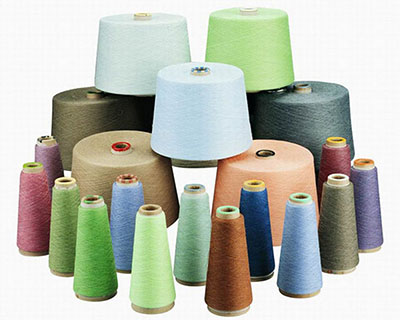

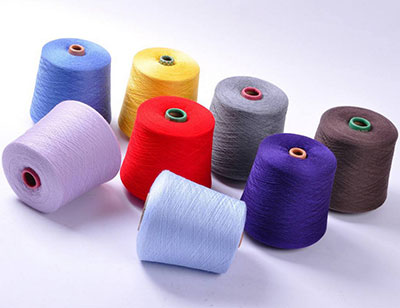

  • Samples
  • Samples
  • Samples
Request a Quote
Technical Parameters
Items Technical Parameter

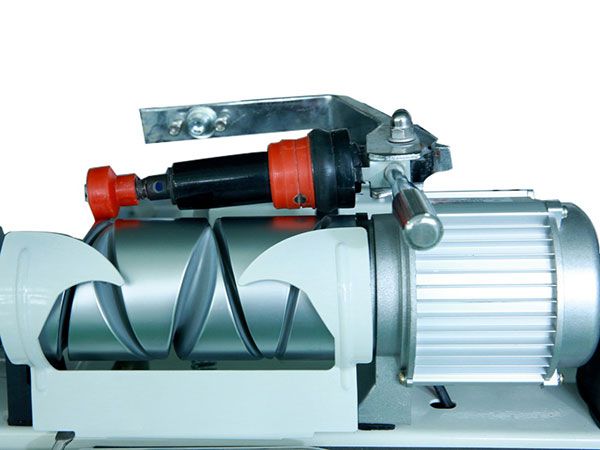

Grooved drum O/D 82mm, lead 2.5 (turns) ×147, angle: 0°
Take-up tubes Cylindrical or cone with conicity of 3°30′, 4 °20′
Bobbin length Standard 170mm, customized range: 170-280mm
Yarn length control Electronically set the winding yarn length up to 999999m according to the final package.
Electric waxing device (optional) Square wax piece is used for uniform waxing, a set per spindle
Slow start Ensures a slow and stable start to improve the winding quality.
Counterweight yarn brake Prevent the yarn from shaking during the feeding to provide suitable winding tension.

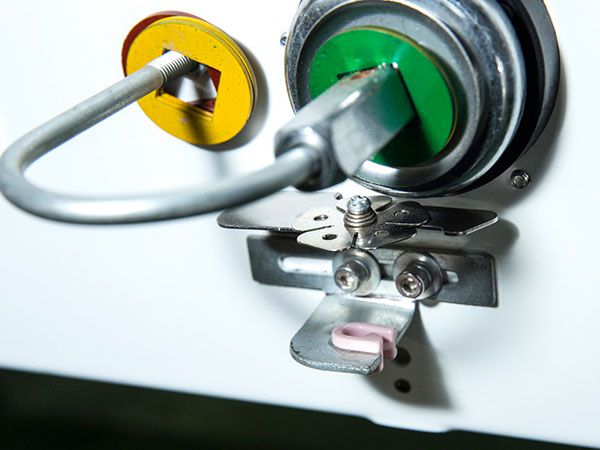

Electronic tensioner Tension plate
Number of spindles per section 12 per section
Number of spindles, max. 120
Drive Individual variable frequency motor per spindle
Max. winding linear speed 1100 m/min, individually controlled per section, frequency control
Traverse Standard: 147mm
Creel balancer Winding tension is controlled by a spring balancer
Yarn detector Photoelectric sensor
Package diameter Max. 280mm

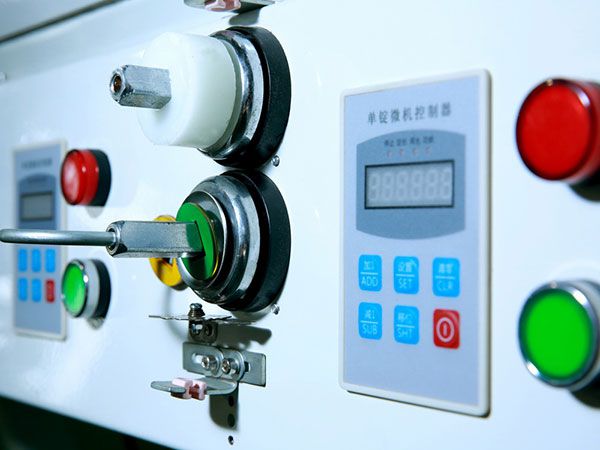

Start/Stop Membrane switch control, touch screen
Vertical anti-patterning device Computer controlled
Vacuum cleaner/blower Optional, 1100W (cleaning power)
Power consumption 60W/spindle (at the highest speed), including the power of cleaner motor
Power supply 3-phase 380V 10%, 50/60Hz, 220V, 440V
Weight (12 spindles) 350kg
Dimension (12 spindles) 2250mm (L)×1100mm(W)×1400mm(H)
Cleaner weight 132 kg, depending on the number of spindles
Weight and dimension of the electricity box 45kg, 700mm(L)×300mm(W)×1320mm(H)
Functions
  • The winding speed can be set and controlled automatically by the computer, offering a maximum speed of 1100 m/min.
  • Advanced yarn cleaning, tension device and photoelectric yarn detector avoids the yarn loop.
  • Accurate and sensitive speed controller ensures even and consistent winding length (weight).
  • Electrically rotary waxing ensures the waxing quantity and uniformity.

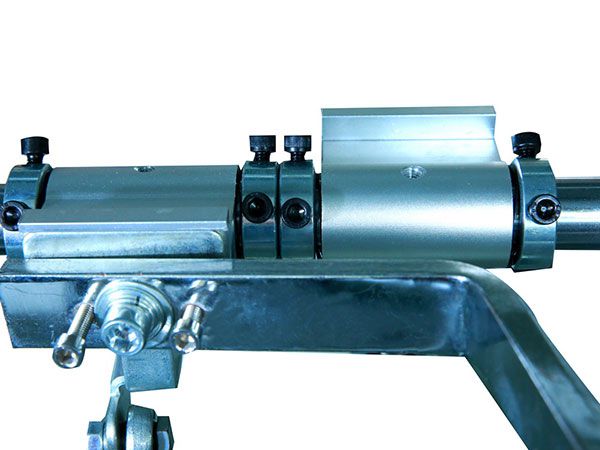

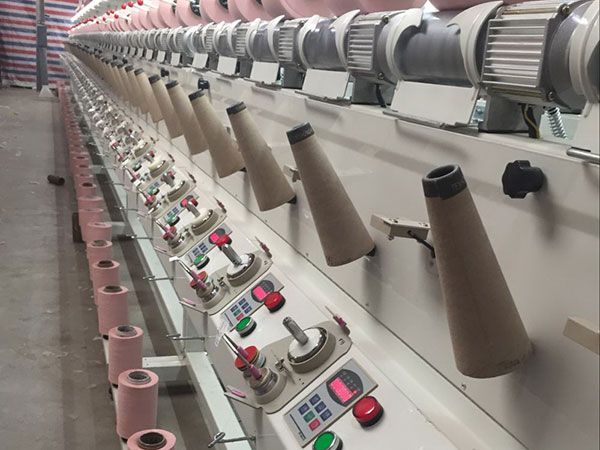

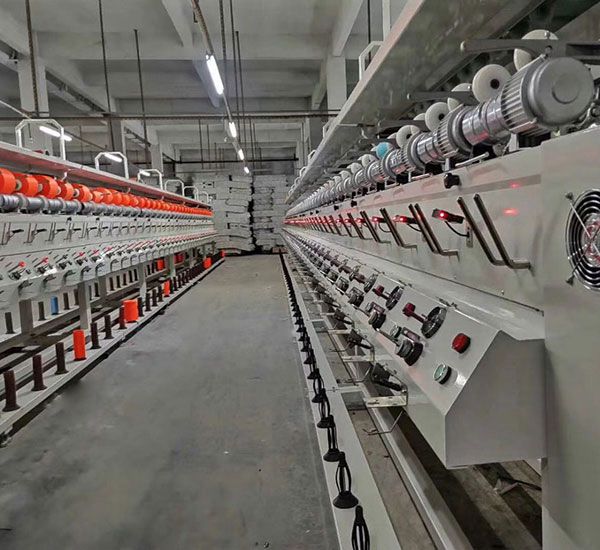

Details
  • Details
  • Details
  • Details
  • Details
  • Details
