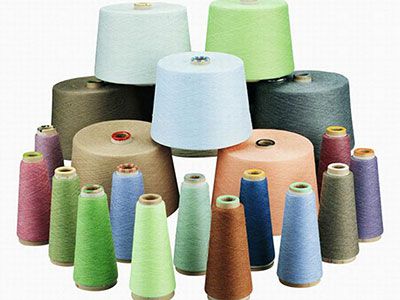

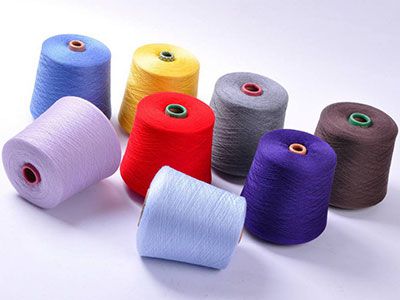

for a conical package shape
for cops that are the most flexible base for a wide range of package shapes (e.g.: cylindrical - no taper / biconical - double taper / single taper / bottle shape), depending on the winding unit (type of winding)
Sewing yarns are especially made to pass rapidly through a sewing machine. They are a fine cord of a fibrous material, which are made of two or more filaments twisted together. The yarns form efficient stitches without breaking or becoming distorted.
Textile yarn spun twisted from staple length fiber, either natural or synthetic.
Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.
Natural fibre from the cotton plant which is spun into fine yarn.
Synthetic fiber made from a thermoplastic polymer that contains the ester functional group in their main chain. Most commonly refers to a type called polyethylene terephthalate (PET) or polyethylene succinate (PES) with a melting point from 103 - 106°C.
Polypropylene is a thermoplastic polymer used in a wide variety of applications including packaging and labeling, textiles (e.g., ropes, thermal underwear and carpets), stationery, plastic parts and reusable containers of various types, laboratory equipment, loudspeakers, automotive components, and polymer banknotes. It’s an addition polymer made from the monomer propylene, which is rugged and unusually resistant to many chemical solvents, bases and acids.
Aramid is the short term for aromatic polyamide. They are fibres, in which the chain molecules are highly oriented along the fibre axis, so the strength of the chemical bond can be exploited. The fibre is heat-resistant and of great strength. Aramid is used in materials for bulletproof vests and radial tires.
Viscose, formerly known as viscose rayon, is made by treating cellulose with caustic alkali solution and carbon disulphide. It is a soft fibre commonly used in dresses, linings, shirts, shorts, coats, jackets, and other outerwear.
The yarns are used for technical textile products, which are manufactured for non-aesthetic purposes. The function such as rigidity, strength, dimension stability, design flexibility and economic viability is main feature.

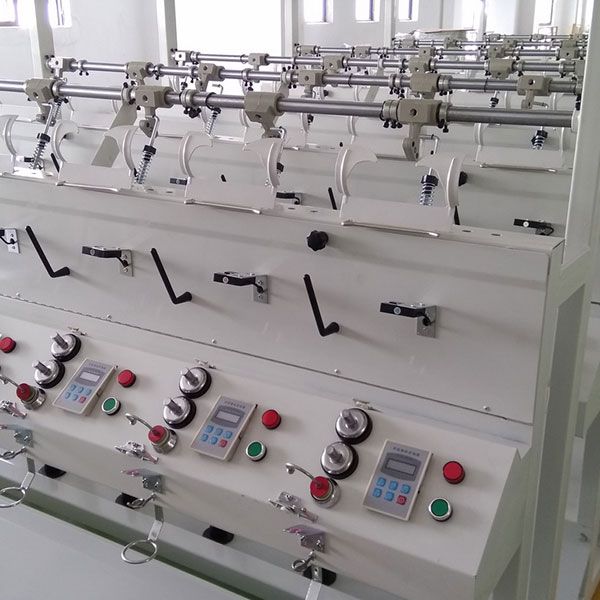

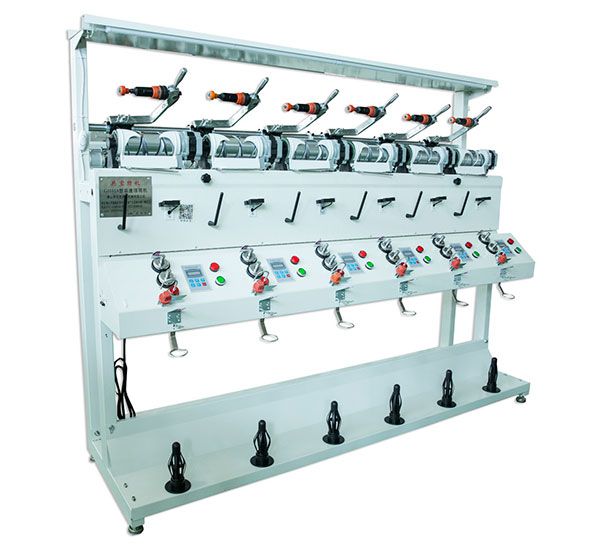

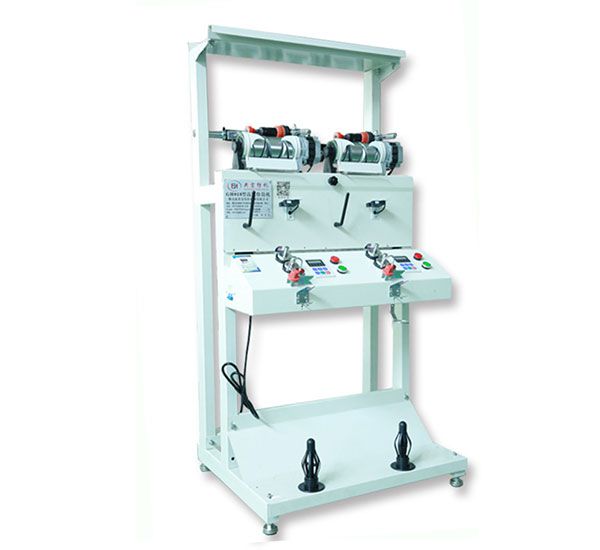

GH018-B High-Speed Yarn Cone To Cone Rewinder Machine is used to wind yarns from cone to cone by using cylindrical or conic bobbins. It is ideal to wind chemical fiber yarns, cotton yarns, filament yarns, low stretch yarns, etc. The winding machine can be used in lace machine, knitting machine, warping machine, hosiery machine and so on.

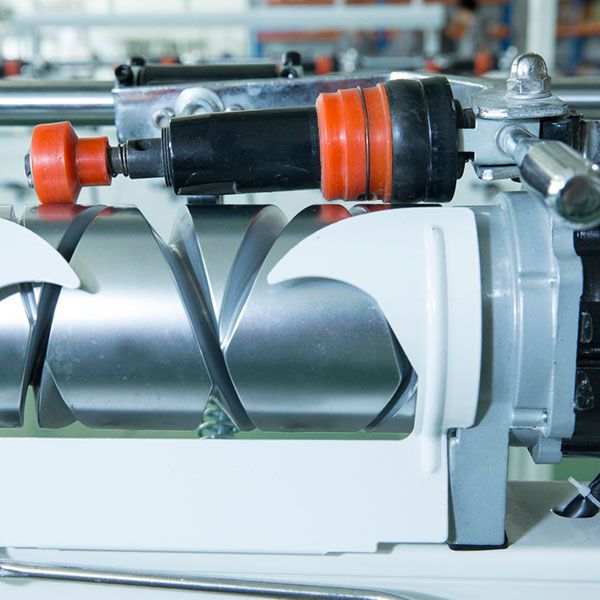

| Grooved drum | O/D 82mm, lead 2.5 (turns)×147, angle: 0° |

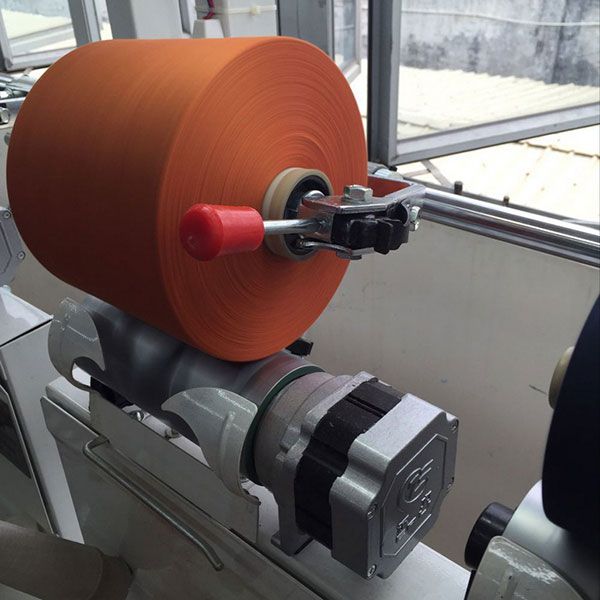

| Take-up tubes | Cylindrical (0°)/cones with a conicity of 3°30′, 4 °20′ |
| Bobbin length | Standard 170mm, customized range: 170-280mm |
| Electric waxing device | Square wax piece is used for uniform waxing, a set per spindle |

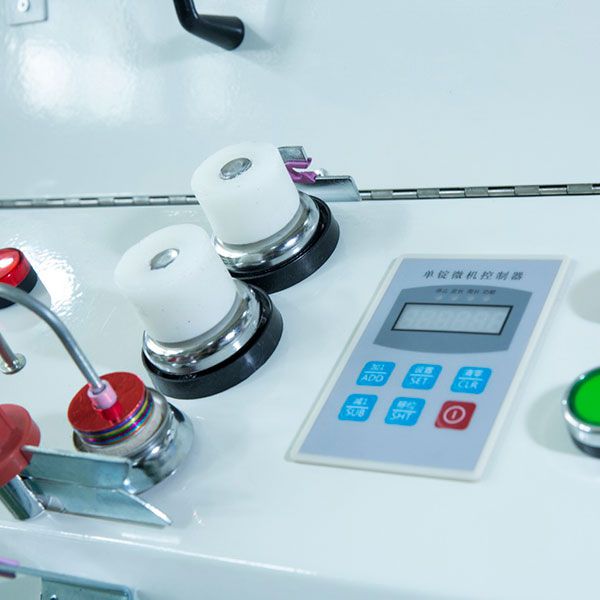

| Yarn length control | Electronically set the winding yarn length up to 999999 m according to the final package. |
| Slow start | Ensures a slow and stable start to improve the winding quality. |
| Counterweight yarn brake | Prevent the yarn from shaking during the feeding to provide suitable winding tension. |
| Electronic tensioner | Tension plate |
| Number of spindles per section | 6 |
| Max. number of spindles per machine | 120 (20 sections) |
| Drive | Individual variable frequency motor per spindle, max. 60 spindles per row |
| Winding linear speed | 1100 m/min, individually controlled per section, frequency control |
| Traverse | Standard: 147mm |
| Creel balancer | Winding tension is controlled by a spring balancer |
| Yarn detector | Photoelectric sensor |
| Package diameter | Max. 170mm |
| Start/Stop | Membrane switch control, touch screen |
| Vertical anti-patterning device | Computer controlled |
| Power consumption | 60W/spindle (at the highest speed), including the power of cleaner motor |
| Power supply | 3-phase 380V 10%, 50/60Hz, 220V, 440V |
| Weight (12 spindles) | 350kg |
| Dimension (12 spindles) | 2250mm (L)×1100mm(W)×1400mm(H) |
| Cleaner weight | 132 kg, depending on the number of spindles |
| Weight and dimension of the electricity box | 45kg, 700mm(L)×300mm(W)×1320mm(H) |
| Vacuum cleaner/blower | Optional, 1100W (cleaning power) |
| Air splicer | Optional |
GONGHONG is focused on providing complete sets of high quality textile machines for global clients. With more than ten years of industry experience, our R&D team listens to and works with our customers to manufacture premium quality yarn winding machines so as to improve their productivity. The quality and high cost performance of our yarn winder are particularly praised by customers worldwide. Our professional service team will answer your doubts and make reasonable yarn winding solutions catering to your winding needs, as well as provide the best after-sales service. Based on our expertise in textile machinery, we are committed to continuously developing and producing high quality sewing thread winders catering to customer needs. As a reliable China yarn winding machine manufacturer, we are confident to provide you high quality machines with affordable prices.

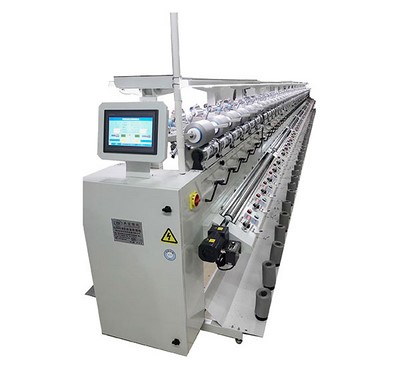

GH018-Z High-speed yarn oiled special winding machine is used to wind chemical fiber yarn, acrylic fibers, industrial filament, low stretch yarn and nylon threads into cylindrical or conic packages for next process.

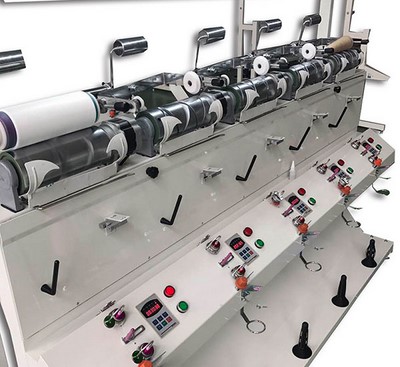

GH018-230 Type high speed yarn bobbin winding machine is specially used for winding yarns on 230mm bobbin. It is applicable to the winding of chemical fiber, acrylic fiber, cotton yarn, filament, low stretch yarn, polypropylene fiber and polyamide threads into conic or cylindrical packages for next process.

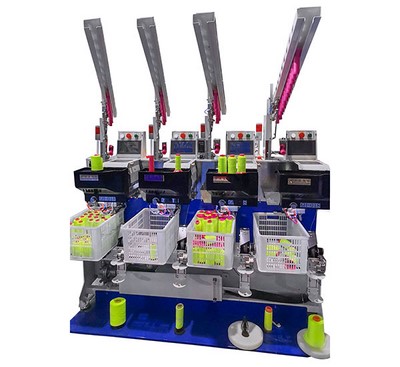

GH018-Y fully automatic high speed king spool thread winding machine is designed to wind embroidery threads, sewing threads, nylon threads, high tenancy sewing threads into 2-4 inches king spools.
GH019 Semi-automatic thread winding machine comes with manual bobbin feeding and winding system, adopting computer-based automatic length counter, frequency control, slotted spool yarn guide device, pump-based cycling-type oiling device, etc.
We are a trusted China yarn winding equipment manufacturer, our commitment to textile machinery and facilities for yarn processing has always been exceptional. Offering quality winding machines and application-oriteted solutions is always our mission since the establishment.
