GH018-D 280 Type High Speed Large Package Winder

GH018-D 280 Type High Speed Large Package Winder
GH018-D 280 Type High Speed Large Package Winder GH018-D 280 Type High Speed Large Package Winder

GH018-D 280 Type High Speed Large Package Winder

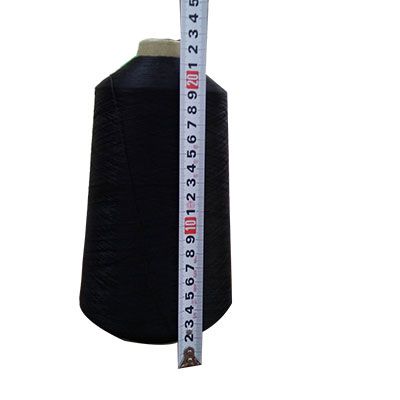

  • Cones
    Cones

    for a conical package shape

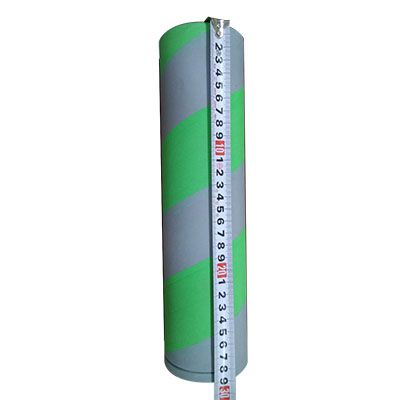

  • Tubes
    Tubes

    for cops that are the most flexible base for a wide range of package shapes (e.g.: cylindrical - no taper / biconical - double taper / single taper / bottle shape), depending on the winding unit (type of winding)

  • ST
    Sewing yarn

    Sewing yarns are especially made to pass rapidly through a sewing machine. They are a fine cord of a fibrous material, which are made of two or more filaments twisted together. The yarns form efficient stitches without breaking or becoming distorted.

  • Spun yarn
    Staple spun yarn

    Textile yarn spun twisted from staple length fiber, either natural or synthetic.

  • Filament Yarn
    Filament yarn

    Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

  • CO
    Cotton

    Natural fibre from the cotton plant which is spun into fine yarn.

  • PET / PES
    Polyester

    Synthetic fiber made from a thermoplastic polymer that contains the ester functional group in their main chain. Most commonly refers to a type called polyethylene terephthalate (PET) or polyethylene succinate (PES) with a melting point from 103 - 106°C.

  • PP
    Polypropylene (PP)

    Polypropylene is a thermoplastic polymer used in a wide variety of applications including packaging and labeling, textiles (e.g., ropes, thermal underwear and carpets), stationery, plastic parts and reusable containers of various types, laboratory equipment, loudspeakers, automotive components, and polymer banknotes. It’s an addition polymer made from the monomer propylene, which is rugged and unusually resistant to many chemical solvents, bases and acids.

  • AR
    Aramid

    Aramid is the short term for aromatic polyamide. They are fibres, in which the chain molecules are highly oriented along the fibre axis, so the strength of the chemical bond can be exploited. The fibre is heat-resistant and of great strength. Aramid is used in materials for bulletproof vests and radial tires.

  • CV
    Viscose

    Viscose, formerly known as viscose rayon, is made by treating cellulose with caustic alkali solution and carbon disulphide. It is a soft fibre commonly used in dresses, linings, shirts, shorts, coats, jackets, and other outerwear.

  • TY
    Technical Yarns

    The yarns are used for technical textile products, which are manufactured for non-aesthetic purposes. The function such as rigidity, strength, dimension stability, design flexibility and economic viability is main feature.

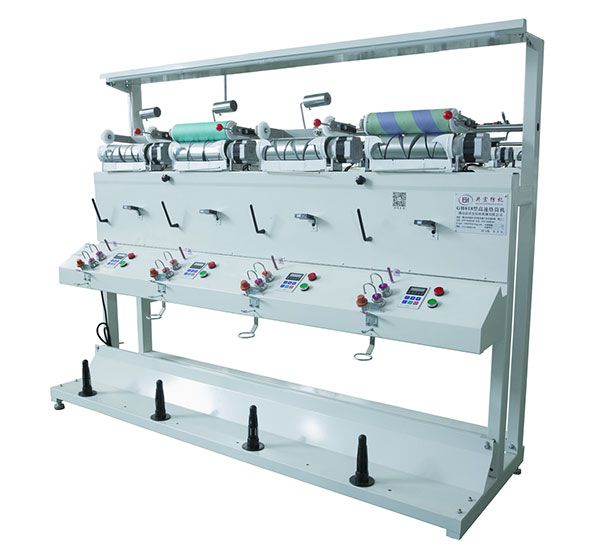

GH018-D 280 type high speed large package winder is especially ideal for winding of chemical fiber yarn, cotton yarn, industrial filament, low stretch yarn and mop yarn into cylindrical or conic packages for next process. The maximum take-up volume capacity of the winder can be 10kg/package. This machine offers good shape formation without expanding the edge and high working efficiency.

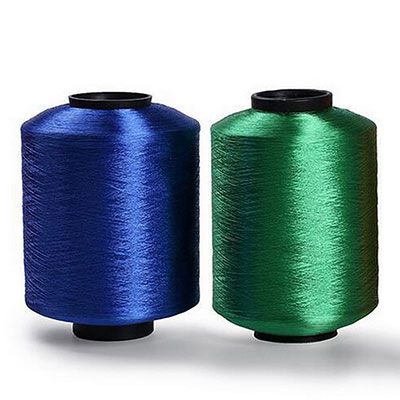

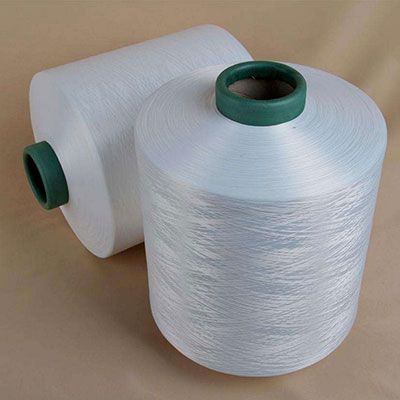

  • Samples
  • Samples
  • Samples
  • Samples
Request a Quote
Technical Parameters
Traverse length 10″(280mm-300mm)
Layout/Number of spindles Sigle sided/ 2-36 per machine
Power supply 220V/three-phase, 380V50/60HZ
Drive Individual AC motor per spindle
Power consumption 0.18 kW/spindle
Take-up tubes Cylindrical (0°)/conic shape
Take-up package diameter Up to 200 or 300mm
Winding linear speed 300-1000 m/min

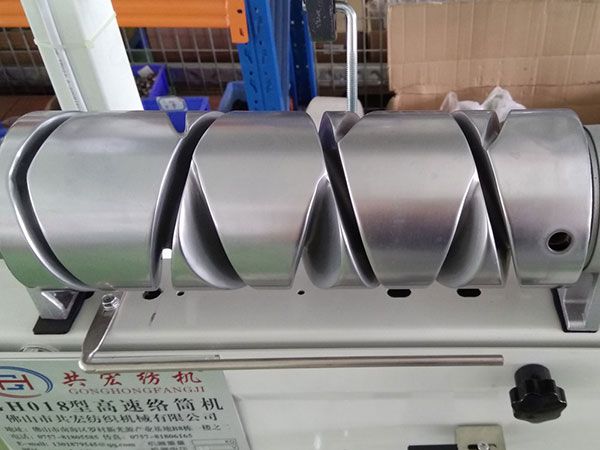

Electronic anti-patterning device Frequency control
Length control device Centralized control by PLC, length displaying

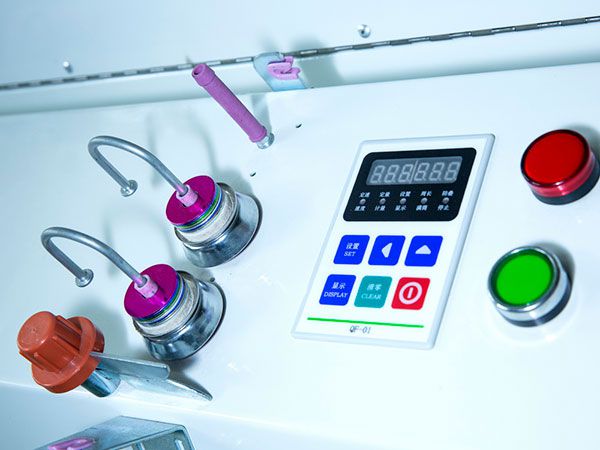

Tension device Rotating self-clearing tensioner and waxing device per spindle
Mechanical yarn cleaning device Optional adjustable cleaning cutter per spindle
Yarn broken auto-stop Electronic auto-stop device
Speed controller Frequency control
Electronic yarn cleaning device Optional
Air splicer Optional
Lighting system Lamp
Dimensions 2050(L)×750(W)×1650(H)mm (4 spindles)

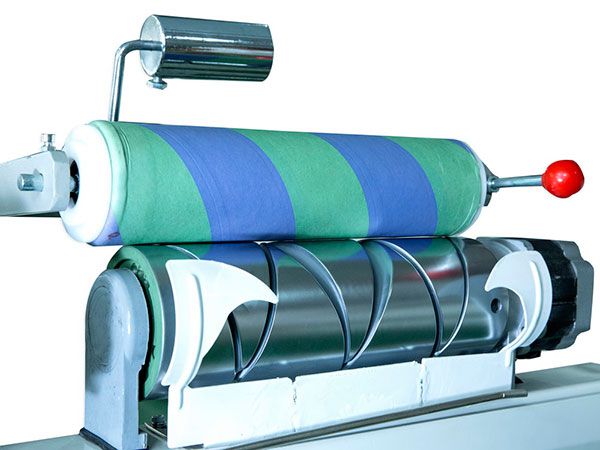

Details
  • Details
  • Details
  • Details
