for sewing threads / final make-up

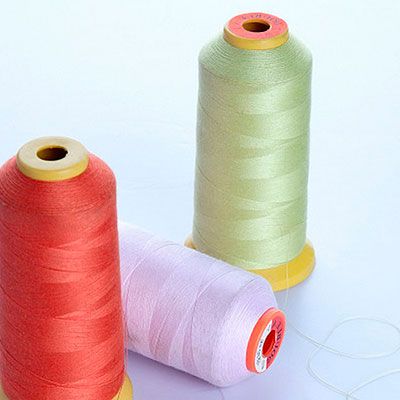

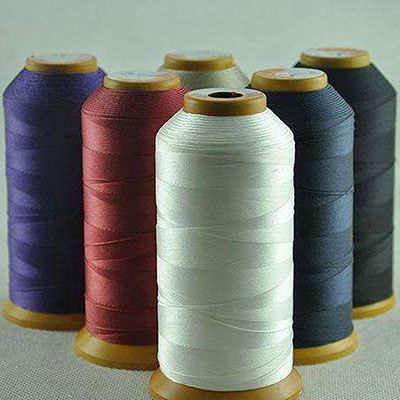

Sewing yarns are especially made to pass rapidly through a sewing machine. They are a fine cord of a fibrous material, which are made of two or more filaments twisted together. The yarns form efficient stitches without breaking or becoming distorted.
Textile yarn spun twisted from staple length fiber, either natural or synthetic.
Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.
Viscose, formerly known as viscose rayon, is made by treating cellulose with caustic alkali solution and carbon disulphide. It is a soft fibre commonly used in dresses, linings, shirts, shorts, coats, jackets, and other outerwear.
The yarns are used for technical textile products, which are manufactured for non-aesthetic purposes. The function such as rigidity, strength, dimension stability, design flexibility and economic viability is main feature.

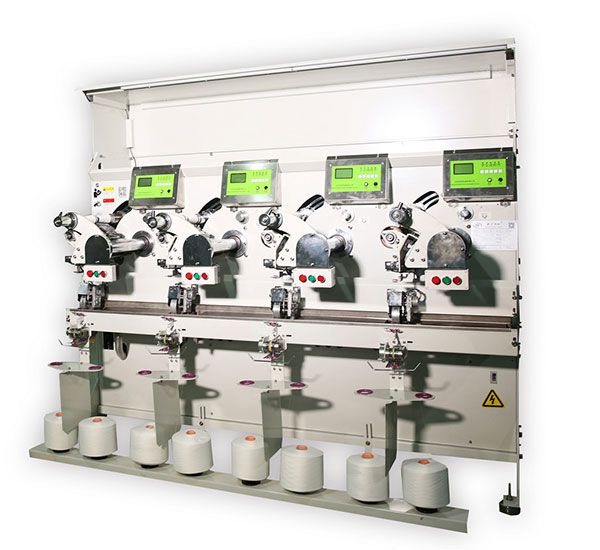

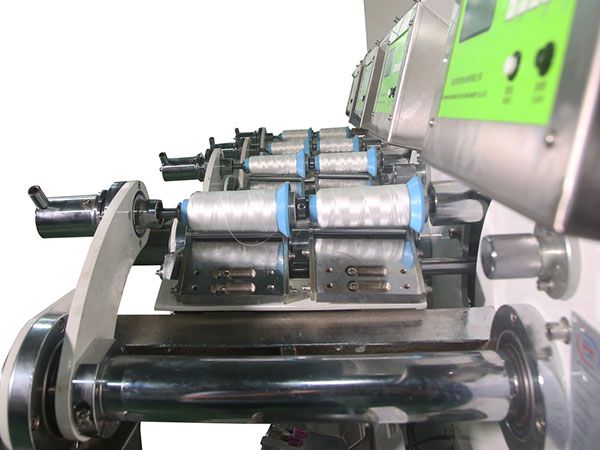

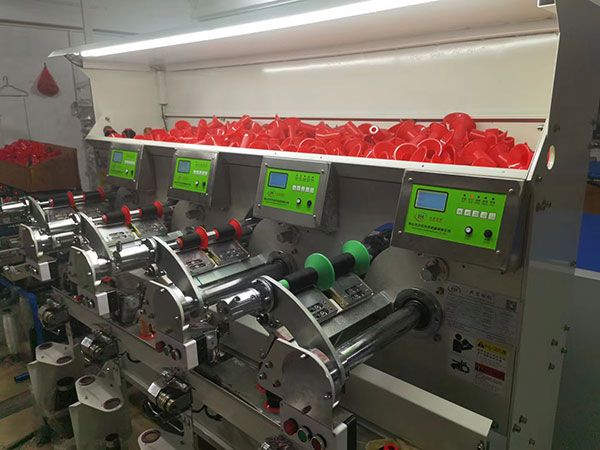

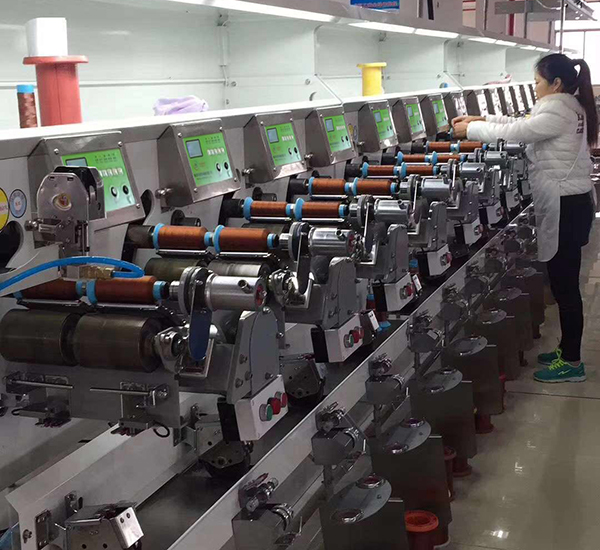

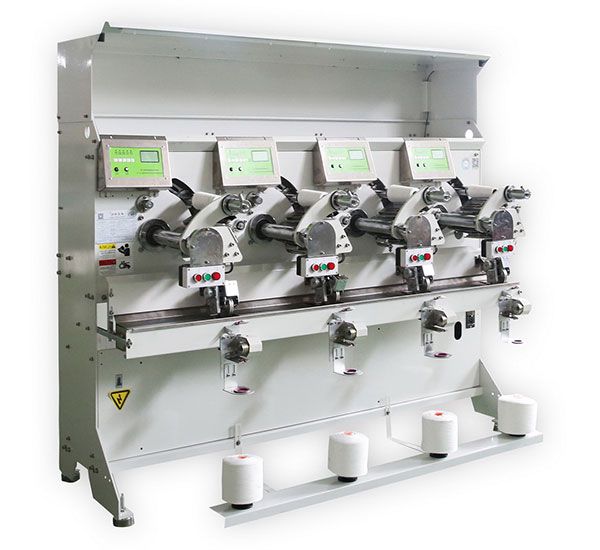

GH019-SY Semi-automatic high-speed king spool thread winding machine is applied to winding the sewing threads, embroidery threads, nylon threads, high tenacity sewing threads and so on, which produces a 4-inch king spool package.
| Model | GH019-SY  |
| Shape formation | King spool |
| Tube angle | 0° |
| Max. winding outside diameter | Φ115mm |
| Spindle number | 4 |
| Max. linear speed | 1000 m/min |
| Pattern round number | 3~4 |
| Parameter No. | Name | Value |
| 0 | Password | 0000~99999 |
| Param-value | ||
| 1 | Full spool length | 0~15000 m |
| 2 | Winding linear speed | 200~1000 m/min |
| 3 | Oil wheel speed ratio | 30~2000 |
| 6 | Winding initial tension | 0~100% |
| 7 | Winding end tension | 0~100% |
| 8 | Yarn-detector state | 0.0~9999″ |
| 9 | Empty spool position confirmation | Computer test value |
| 10 | Fixed block position confirmation | Computer test value |
| 11 | Length correction coefficient | 0.800~1.200 |
GONGHONG is focused on providing complete sets of high quality textile machines for global clients. With more than ten years of industry experience, our R&D team listens to and works with our customers to manufacture premium quality yarn winding machines so as to improve their productivity. The quality and high cost performance of our yarn winder are particularly praised by customers worldwide. Our professional service team will answer your doubts and make reasonable yarn winding solutions catering to your winding needs, as well as provide the best after-sales service. Based on our expertise in textile machinery, we are committed to continuously developing and producing high quality sewing thread winders catering to customer needs. As a reliable China yarn winding machine manufacturer, we are confident to provide you high quality machines with affordable prices.

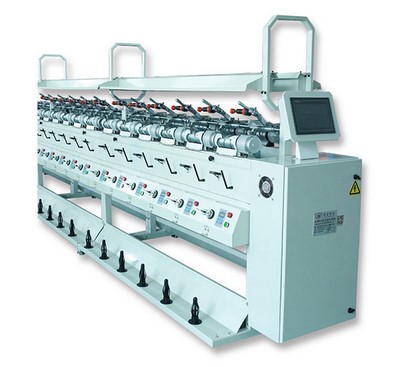

GH018-M high-speed hard winding machine is used to produce hard cone packages for knitting machine, shuttle loom, warping machine and hosiery machine. It is an ideal winding machine for cotton threads, hemp threads and chemical fiber yarns.

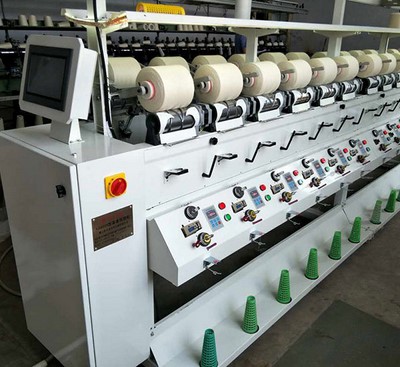

GH018-T textile special electric clean winding machine is used to wind yarns from cone to cone, and produce hard packages for knitting machine, shuttle loom, warping machine and hosiery machine. It is an ideal winding machine for cotton threads, hemp threads and chemical fiber yarns.

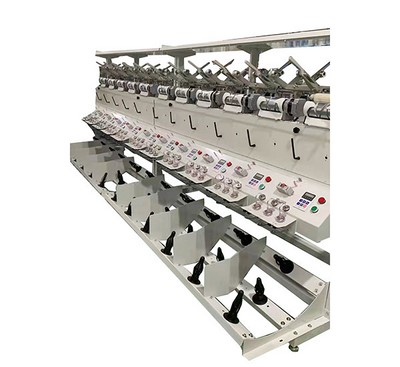

GH018-G high speed yarn doubling winding machine is used to wind 2-4 strands of chemical fiber yarns, cotton yarns, wool yarns, FDY, hemp yarns, polyester yarns and so on.

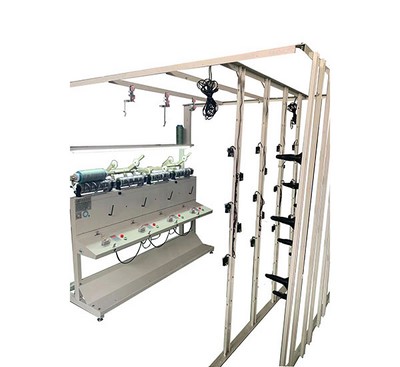

GH018-E high speed multi-ply yarn winding machine adopts high-tech integrated electrical control system and modular design to ensure better performance, stability, reliability and high speed.
