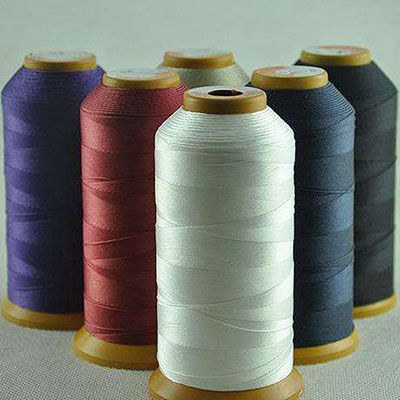

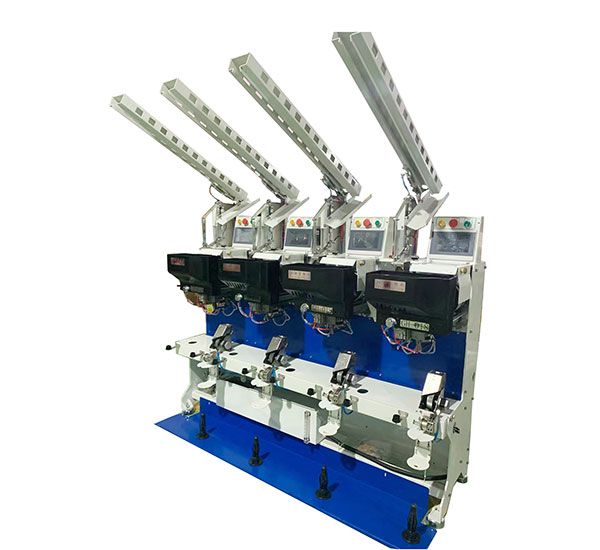

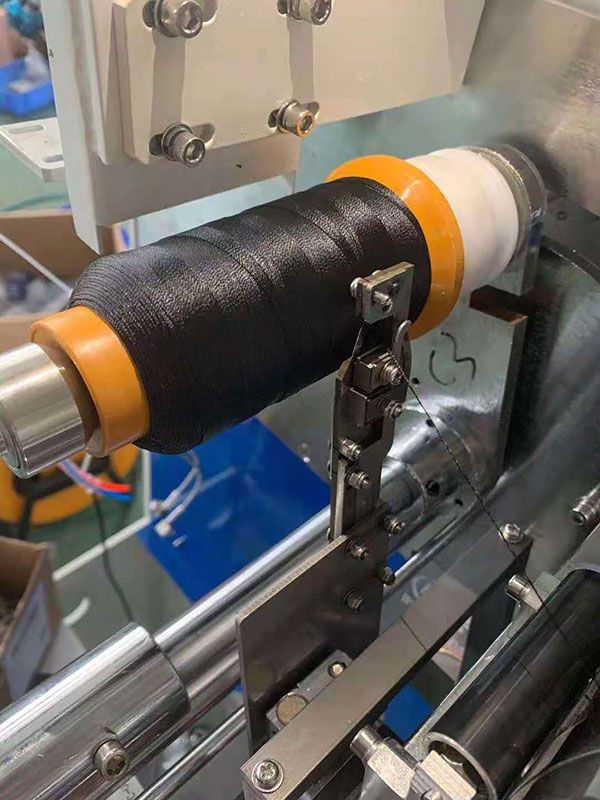

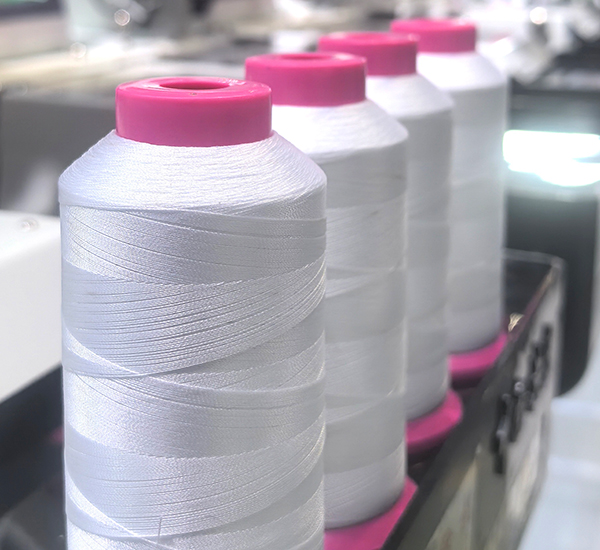

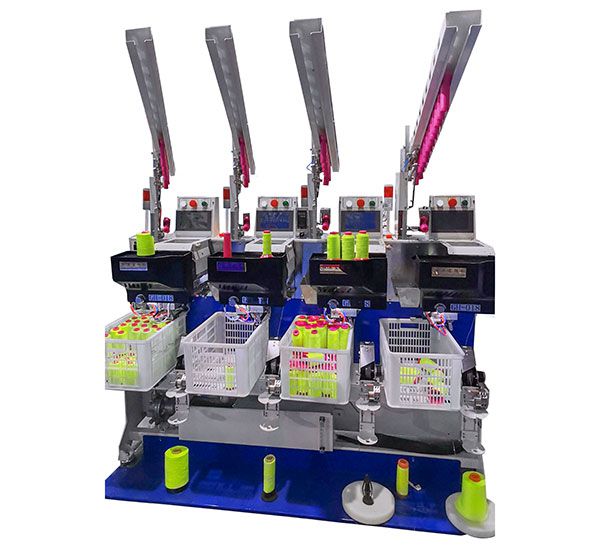

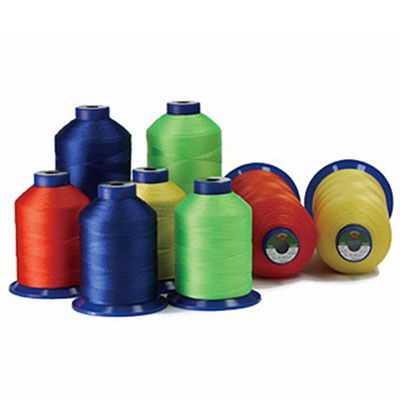

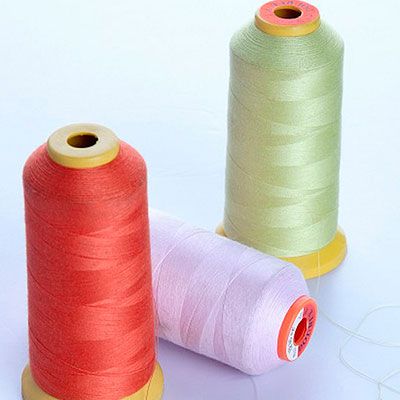

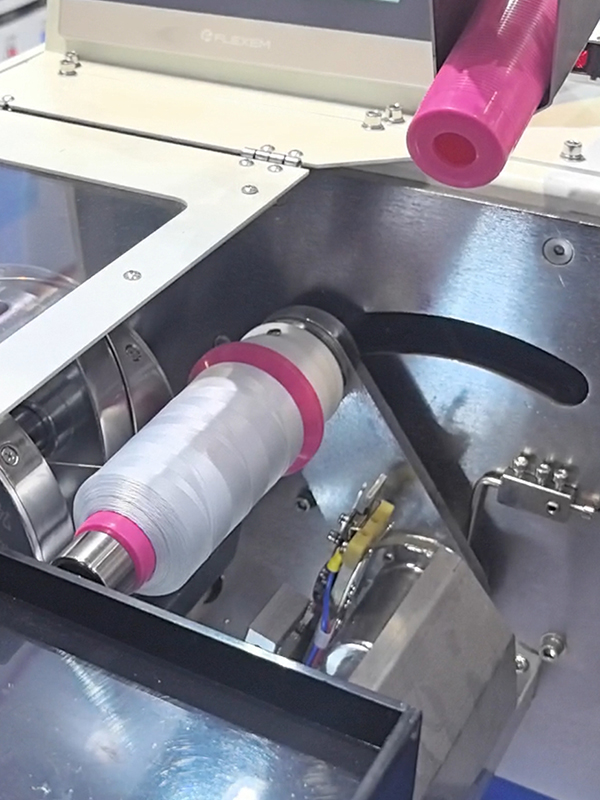

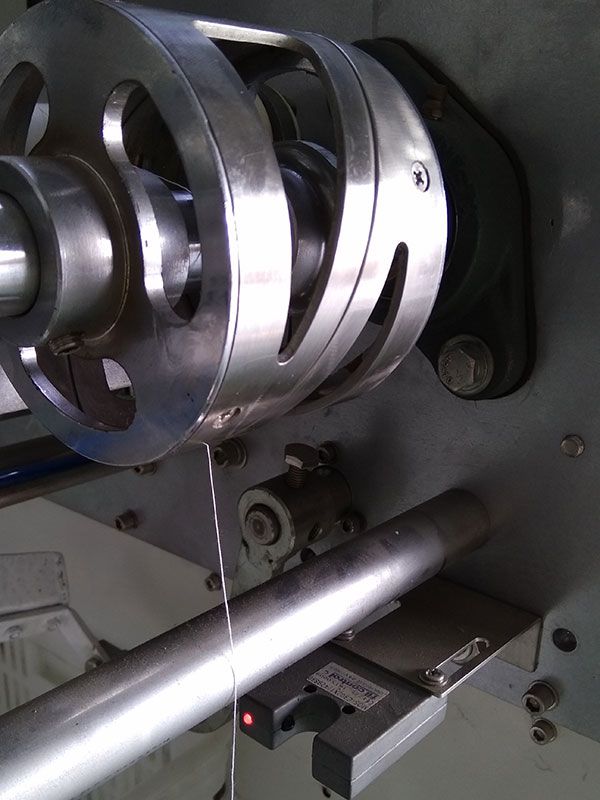

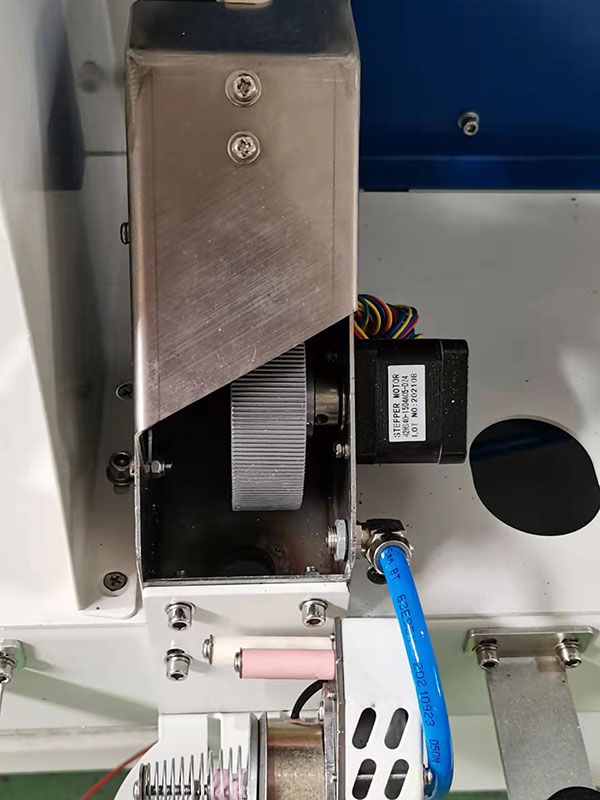

GH018-Y fully automatic high speed king spool thread winding machine is designed to wind embroidery threads, sewing threads, nylon threads, high tenancy sewing threads into 2-4 inches king spools. The winding machine is integrated with an automatic bobbin feeding system, automatic winding system, a computer automatic yarn length counter, frequency control, a slotted spool yarn guide device, and a pump-based cycling-type oiling device. This ensures the winding machine of good shape formation, high efficiency, easy operation, assured safety and reliability, and wide applicability.
| Model | GH018-Y auto |
| Take-up tube | King spool |
| Spindle number | 4 |
| Drive | Individual motor per spindle |
| Control | Computer controlled |
| Traverse length | 2”-4” |
| Spindle speed | 10000rpm |
| Mechanical speed | 200~1000 m/min |
| Weight | 500KG |
| Installed power | 1.2kW |
| Air pressure | 2 KGS |
| Take-up package diameter | Φ140mm |
| Power supply | 220V (single phase) or 380 V (three phases), 1.2kW |
| Frequency | 50/60Hz |
| Compressed air | 0.3Mpa |
| Dimension | 1800×760×1840mm |
GONGHONG is focused on providing complete sets of high quality textile machines for global clients. With more than ten years of industry experience, our R&D team listens to and works with our customers to manufacture premium quality yarn winding machines so as to improve their productivity. The quality and high cost performance of our yarn winder are particularly praised by customers worldwide. Our professional service team will answer your doubts and make reasonable yarn winding solutions catering to your winding needs, as well as provide the best after-sales service. Based on our expertise in textile machinery, we are committed to continuously developing and producing high quality sewing thread winders catering to customer needs. As a reliable China yarn winding machine manufacturer, we are confident to provide you high quality machines with affordable prices.
GH019 Semi-automatic thread winding machine comes with manual bobbin feeding and winding system, adopting computer-based automatic length counter, frequency control, slotted spool yarn guide device, pump-based cycling-type oiling device, etc.
GH018-S high speed soft winding machine is used before dying to wind yarns from cones to cones and to achieve a soft winded package with a good density. The winding speed can be automatically controlled by the computer, with a max. speed up to 1100 m/min. It is an ideal winder for cotton, silk and chemical fiber yarns.
GH018-M high-speed hard winding machine is used to produce hard cone packages for knitting machine, shuttle loom, warping machine and hosiery machine. It is an ideal winding machine for cotton threads, hemp threads and chemical fiber yarns.
GH018-T textile special electric clean winding machine is used to wind yarns from cone to cone, and produce hard packages for knitting machine, shuttle loom, warping machine and hosiery machine. It is an ideal winding machine for cotton threads, hemp threads and chemical fiber yarns.
