for sewing threads / final make-up
tuck with the yarn tail in the thread

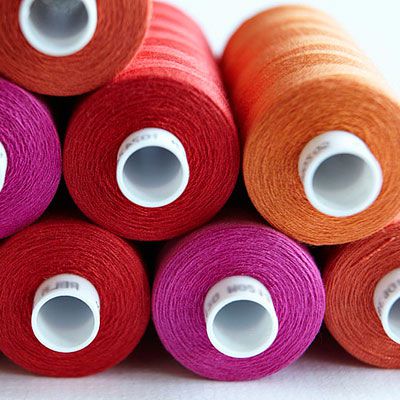

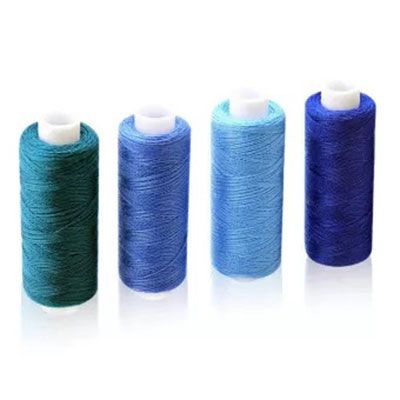

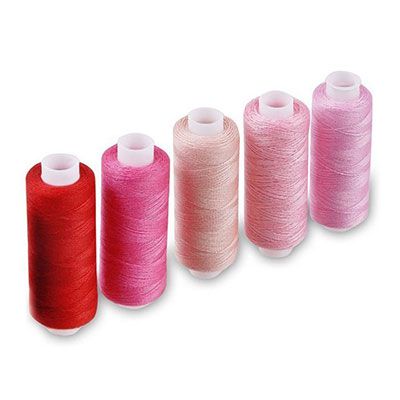

Sewing yarns are especially made to pass rapidly through a sewing machine. They are a fine cord of a fibrous material, which are made of two or more filaments twisted together. The yarns form efficient stitches without breaking or becoming distorted.
Textile yarn spun twisted from staple length fiber, either natural or synthetic.
Natural fibre from the cotton plant which is spun into fine yarn.
Synthetic fiber made from a thermoplastic polymer that contains the ester functional group in their main chain. Most commonly refers to a type called polyethylene terephthalate (PET) or polyethylene succinate (PES) with a melting point from 103 - 106°C.
Viscose, formerly known as viscose rayon, is made by treating cellulose with caustic alkali solution and carbon disulphide. It is a soft fibre commonly used in dresses, linings, shirts, shorts, coats, jackets, and other outerwear.
The yarns are used for technical textile products, which are manufactured for non-aesthetic purposes. The function such as rigidity, strength, dimension stability, design flexibility and economic viability is main feature.

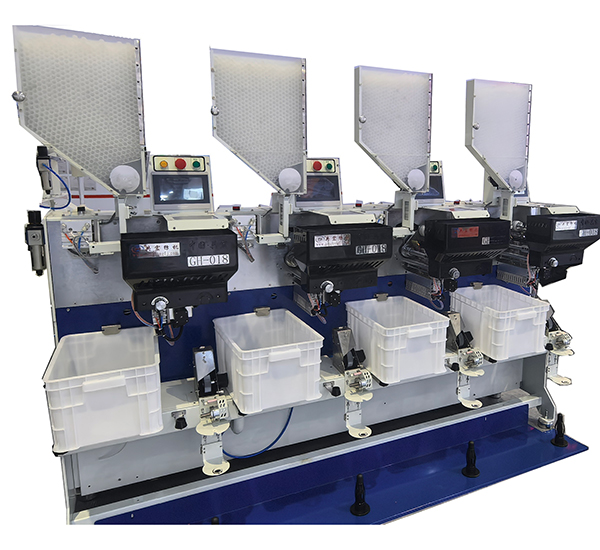

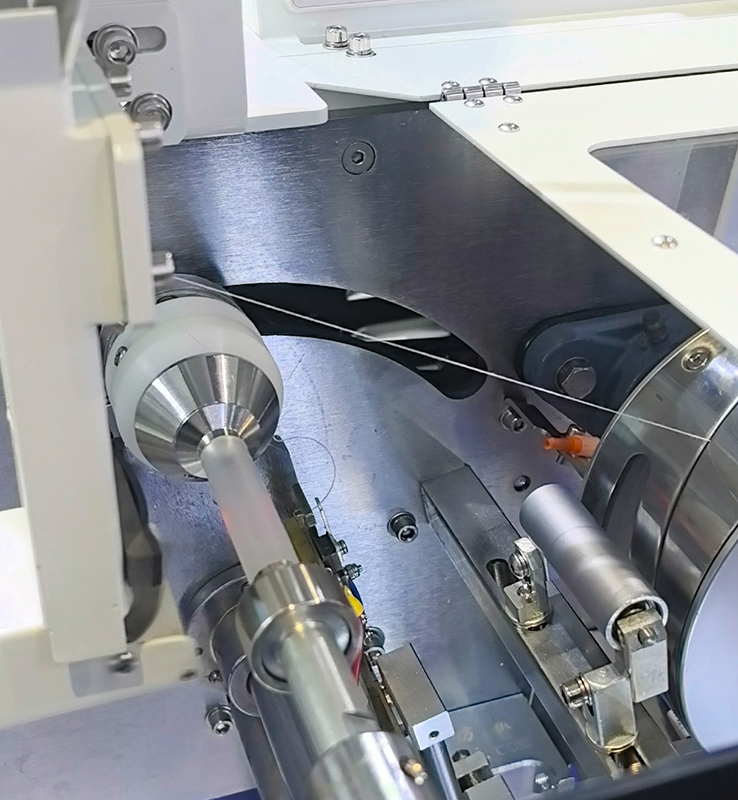

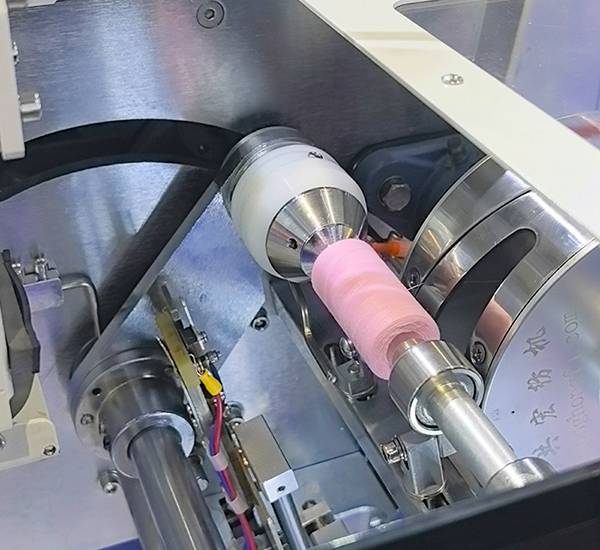

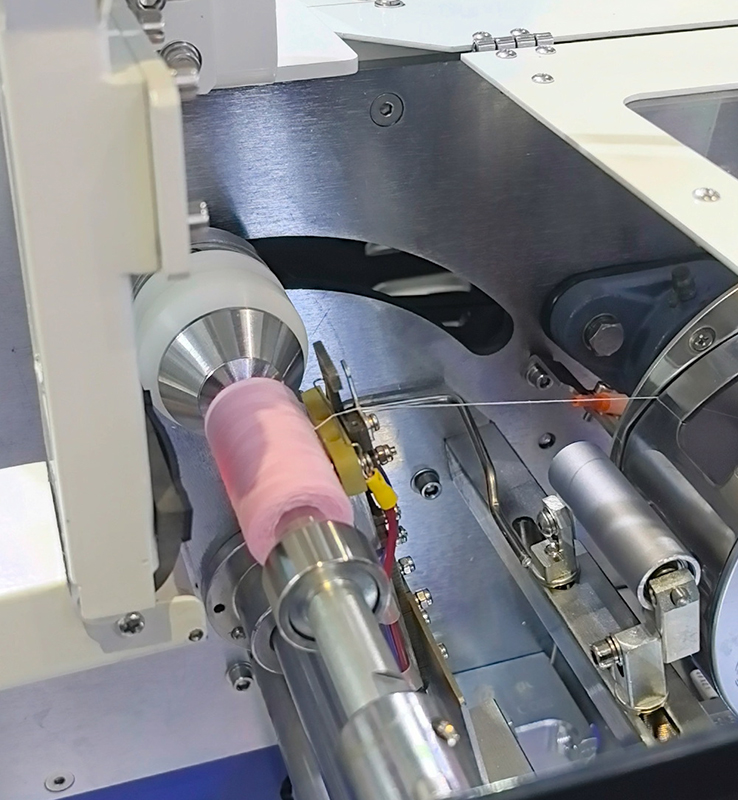

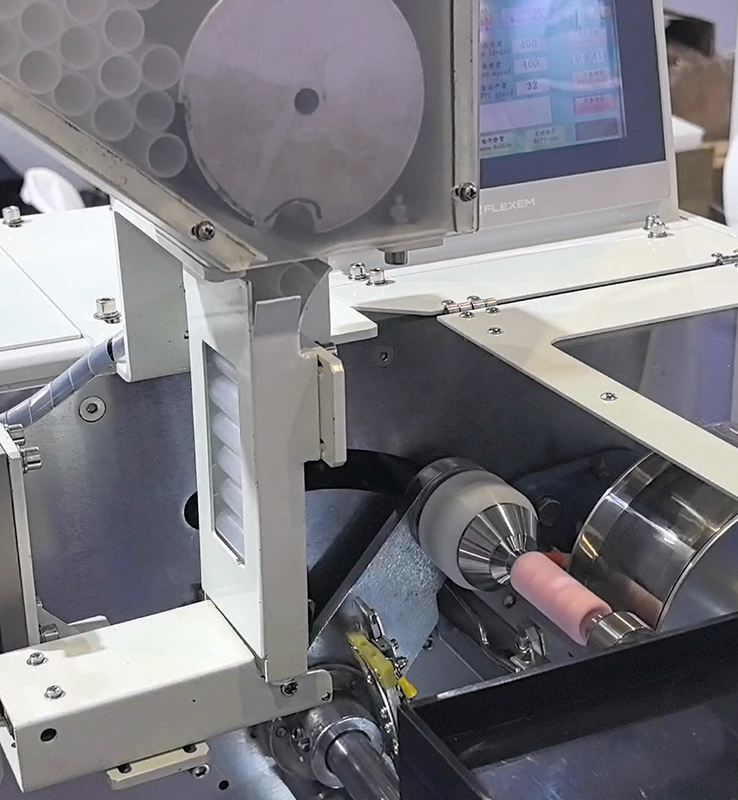

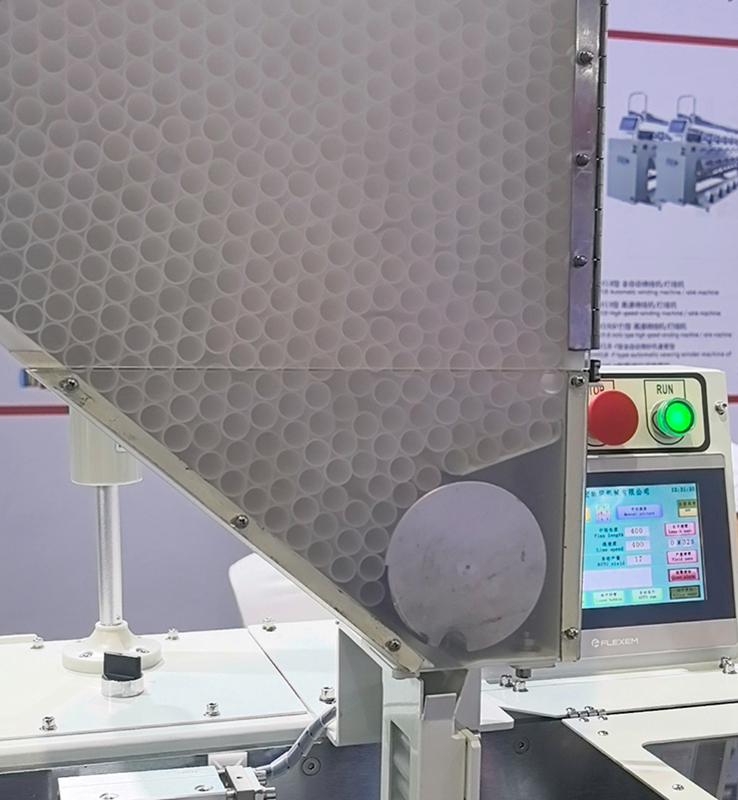

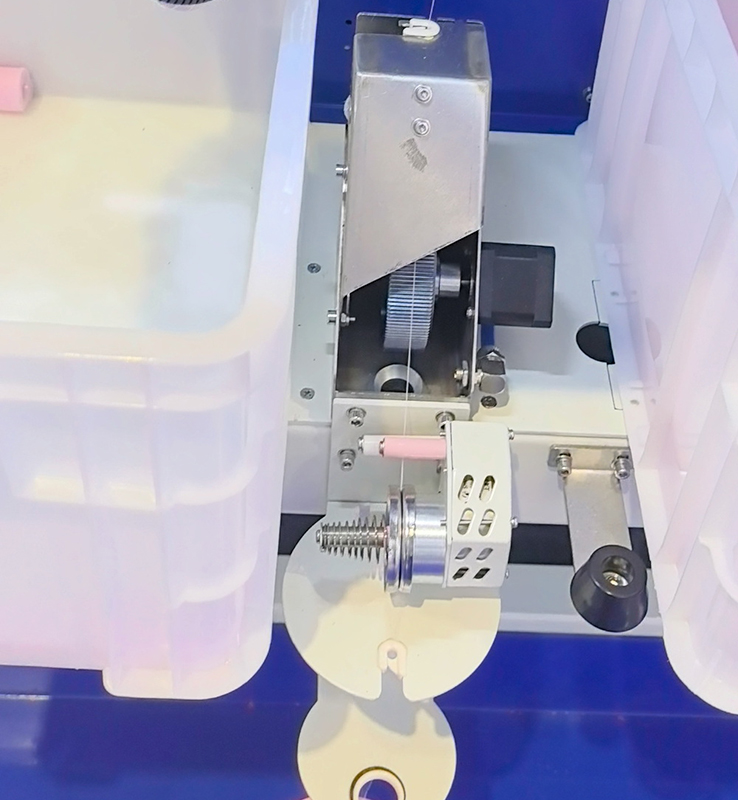

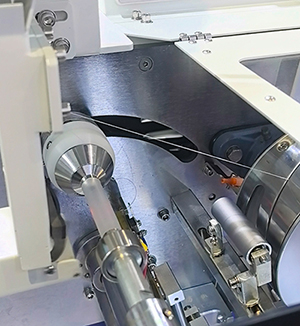

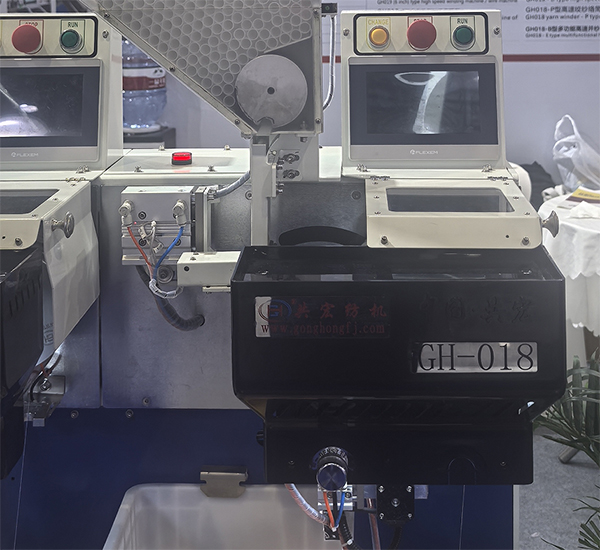

GH018-F fully automatic high speed spool sewing thread winding machine is used for winding embroidery threads into 2 inches tubes. The yarn winding machine adopts automatic bobbin feeding and winding system, a computer controlled automatic yarn length counter, frequency control, a slotted spool yarn guide device, and a pump-based cycling-type oiling device. All devices above enable the machine to have functions of good shape formation, high efficiency, easy operation, assured safety and reliability, and broad applicability.
| Model | GH018-F auto |
| Take-up tube | Cylindrical tube |
| Spindle number | 4 |
| Drive | Individual motor per spindle |
| Control | Computer controlled |
| Traverse length | 2” |
| Spindle speed | 9000rpm |
| Mechanical speed | 200~1000 m/min |
| Weight | 500kg |
| Installed power | 1.2kW |
| Air pressure | 2 KGS |
| Power supply | 220V (single phase) or 380 V (three phases), 1.2kW |
| Frequency | 50/60Hz |
| Compressed air | 0.2MPa |
| Dimension | 2208×812×1619mm |
GONGHONG is focused on providing complete sets of high quality textile machines for global clients. With more than ten years of industry experience, our R&D team listens to and works with our customers to manufacture premium quality yarn winding machines so as to improve their productivity. The quality and high cost performance of our yarn winder are particularly praised by customers worldwide. Our professional service team will answer your doubts and make reasonable yarn winding solutions catering to your winding needs, as well as provide the best after-sales service. Based on our expertise in textile machinery, we are committed to continuously developing and producing high quality sewing thread winders catering to customer needs. As a reliable China yarn winding machine manufacturer, we are confident to provide you high quality machines with affordable prices.
GH018-M high-speed hard winding machine is used to produce hard cone packages for knitting machine, shuttle loom, warping machine and hosiery machine. It is an ideal winding machine for cotton threads, hemp threads and chemical fiber yarns.
GH018-T textile special electric clean winding machine is used to wind yarns from cone to cone, and produce hard packages for knitting machine, shuttle loom, warping machine and hosiery machine. It is an ideal winding machine for cotton threads, hemp threads and chemical fiber yarns.
GH018-P High speed yarn hank to cone winding machine is used for winding yarns from hank to cone and it is applicable to the winding of chemical fiber, cotton yarns, filament yarns and low stretch yarns into conic or cylindrical packages for next process.
GH018-L high speed fully drawn yarn thread winding machine is mainly used to wind yarns from hank to cone, and cone to cone is also available. It is ideal for chemical fiber yarns, fully drawn threads, and metal wires.
We are a trusted China yarn winding equipment manufacturer, our commitment to textile machinery and facilities for yarn processing has always been exceptional. Offering quality winding machines and application-oriteted solutions is always our mission since the establishment.
