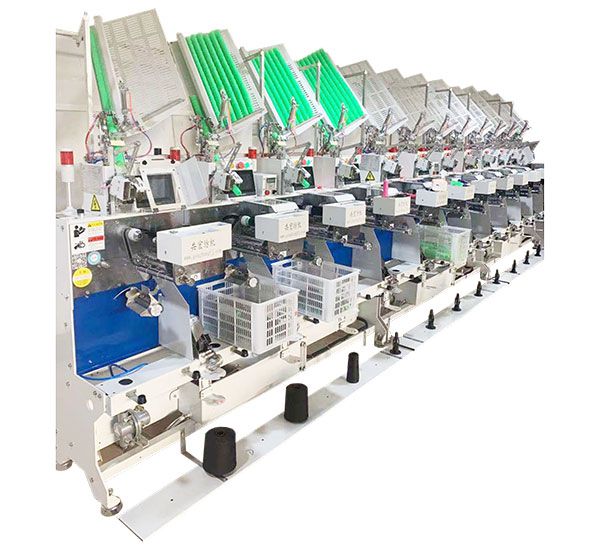

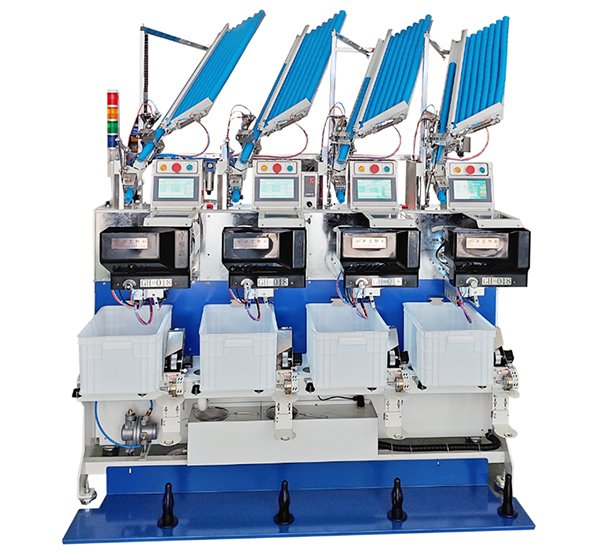

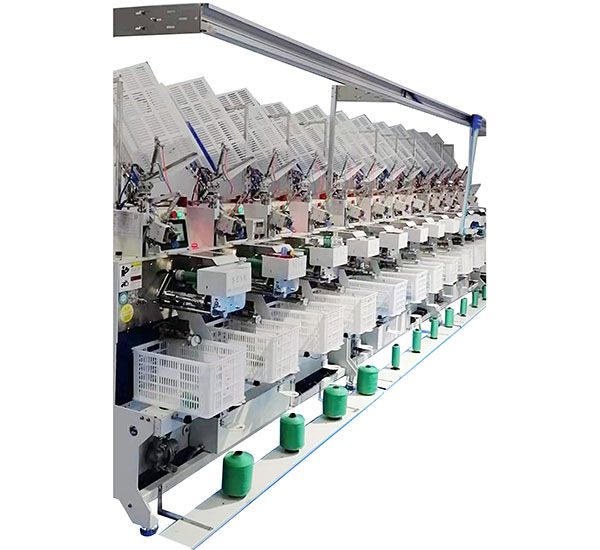

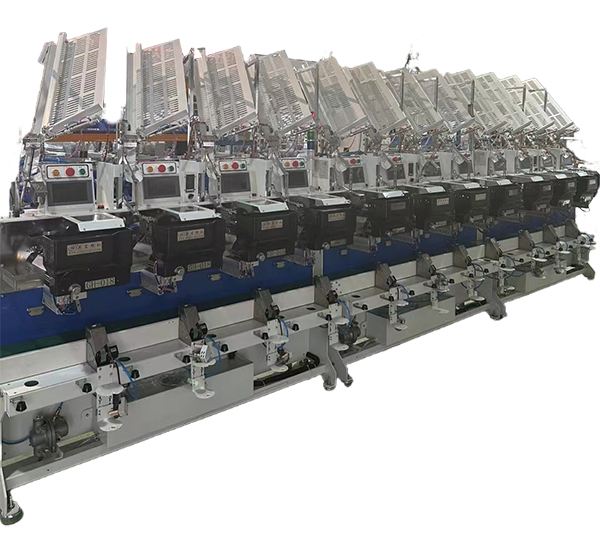

GH018-A Automatic High Speed Sewing Thread Winding Machine

GH018-A Automatic High Speed Sewing Thread Winding Machine
GH018-A Automatic High Speed Sewing Thread Winding Machine GH018-A Automatic High Speed Sewing Thread Winding Machine GH018-A Automatic High Speed Sewing Thread Winding Machine GH018-A Automatic High Speed Sewing Thread Winding Machine GH018-A Automatic High Speed Sewing Thread Winding Machine

GH018-A Automatic High Speed Sewing Thread Winding Machine

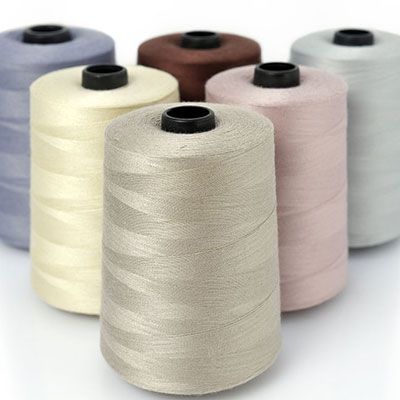

  • Sewing thread cones
    Sewing thread cones

    for a conical package shape with 3" - 4" traverse length

  • Tuck- in
    Tuck- in

    tuck with the yarn tail in the thread

  • ST
    Sewing yarn

    Sewing yarns are especially made to pass rapidly through a sewing machine. They are a fine cord of a fibrous material, which are made of two or more filaments twisted together. The yarns form efficient stitches without breaking or becoming distorted.

  • Spun yarn
    Staple spun yarn

    Textile yarn spun twisted from staple length fiber, either natural or synthetic.

  • CO
    Cotton

    Natural fibre from the cotton plant which is spun into fine yarn.

  • PET / PES
    Polyester

    Synthetic fiber made from a thermoplastic polymer that contains the ester functional group in their main chain. Most commonly refers to a type called polyethylene terephthalate (PET) or polyethylene succinate (PES) with a melting point from 103 - 106°C.

  • CV
    Viscose

    Viscose, formerly known as viscose rayon, is made by treating cellulose with caustic alkali solution and carbon disulphide. It is a soft fibre commonly used in dresses, linings, shirts, shorts, coats, jackets, and other outerwear.

  • TY
    Technical Yarns

    The yarns are used for technical textile products, which are manufactured for non-aesthetic purposes. The function such as rigidity, strength, dimension stability, design flexibility and economic viability is main feature.

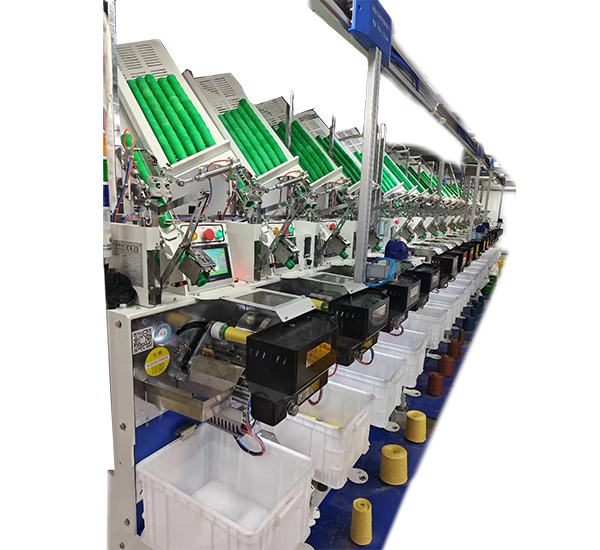

GH018-A fully automatic high speed sewing thread winding machine is applicable to the winding of embroidery threads, sewing threads and so on into 2-4 inches cones.
This sewing thread winder features automatic bobbin feeding and winding system, a computer-controlled automatic yarn length counter, frequency control, a slotted spool yarn guide device, and a pump-based cycling-type oiling device. Thus, the machine offers good shape formation, high efficiency, easy operation, assured safety and reliability, and wide applicability.

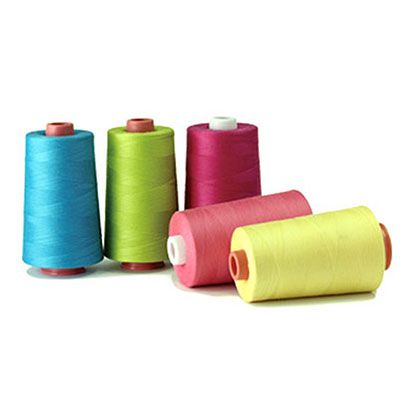

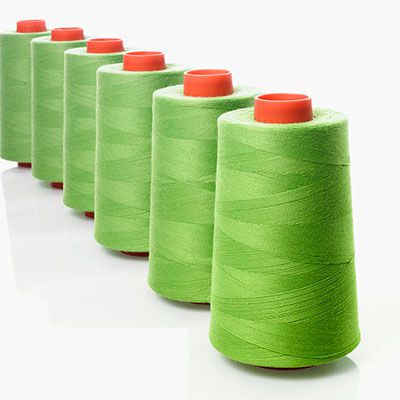

  • Samples
  • Samples
  • Samples
Request a Quote
Technical Parameters
Model GH018-A auto
Take-up tube Conic shape
Spindle number 4
Drive Individual motor per spindle
Control Computer controlled
Traverse length 2”-4”
Spindle speed 10000rpm
Mechanical speed 200~1000 m/min
Weight 500kg
Installed power 1.2kW
Air pressure 2 KGS
Take-up package diameter Φ140mm
Power supply 220V (single phase) or 380 V (three phases), 1.2kW
Frequency 50/60Hz
Compressed air 0.3MPa
Dimension 1800×760×1840mm
Features

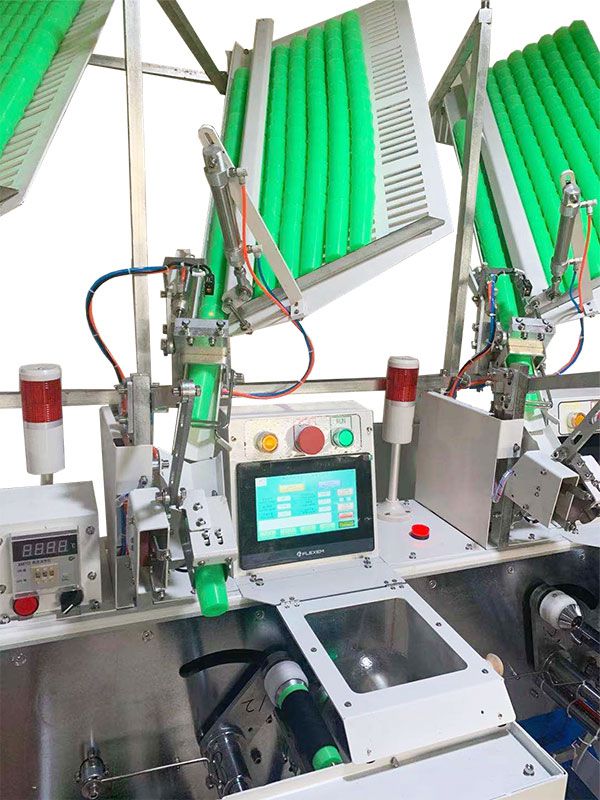

  • Automatic bobbin feeding and automatic winding system offer high automation.
  • Automatic bobbin feeding and no bobbin auto-stop
  • Non-contact broken yarn detector is sensitive.
  • Automatic bobbin changing is fast and stable, greatly reducing labor cost.
  • Computer-based yarn length automatic measuring system comes with an accuracy of ±0.5%.
  • Automatic control of winding linear speed is flexibly set within 100-1000 m/min.

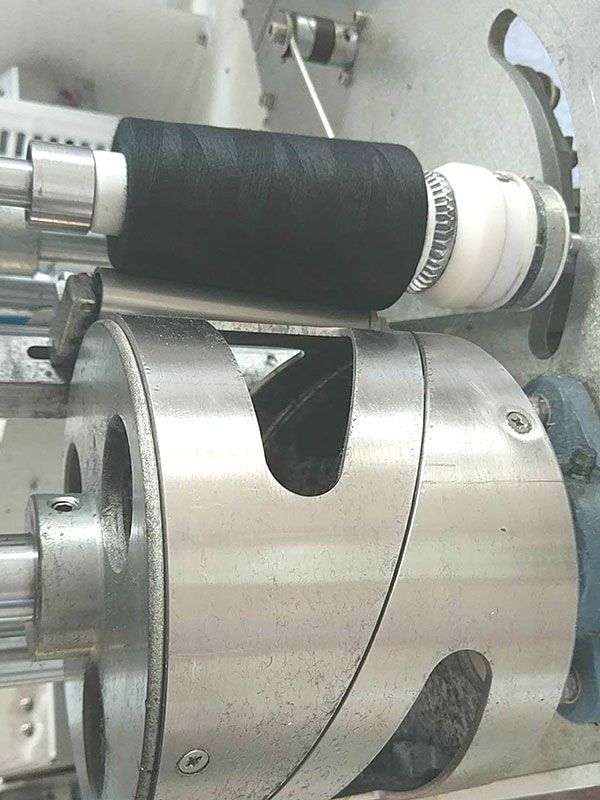

  • Grooved drum yarn guide system offers fast speed and low noise.
  • Grooved drum is manufactured with special material and is polished, being smooth and wear-resistant and having no damage to the yarn.
  • Pump-based cycling-type oiling device allows for the setting of oil wheel speed ratio, ensuring uniform oiling combined with the constant linear speed. Each oil wheel is configured with a filter to prevent oil spray and oil waste.
  • High productivity: each machine offers an output of 5 kg yarns per hour, and the daily output is up to 110kg based on 22 working hours. The efficiency is 5-6 times higher than that of traditional winding machines.

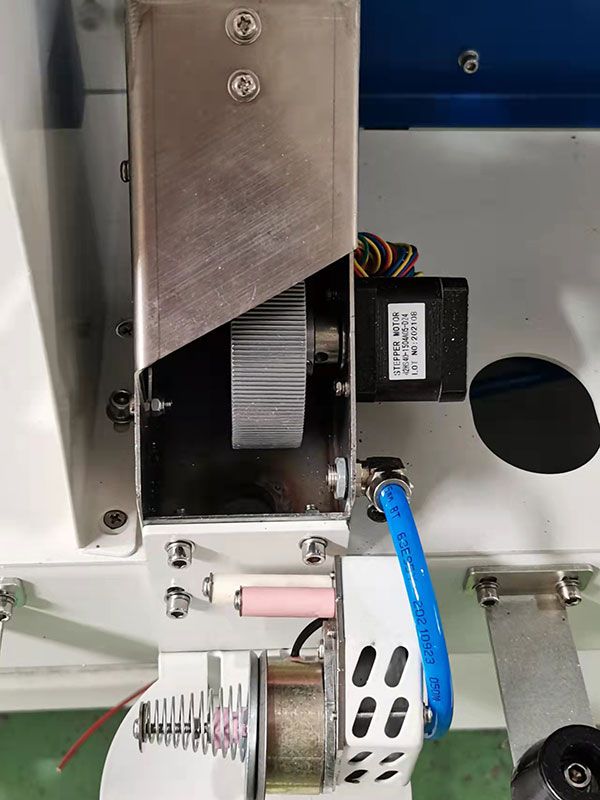

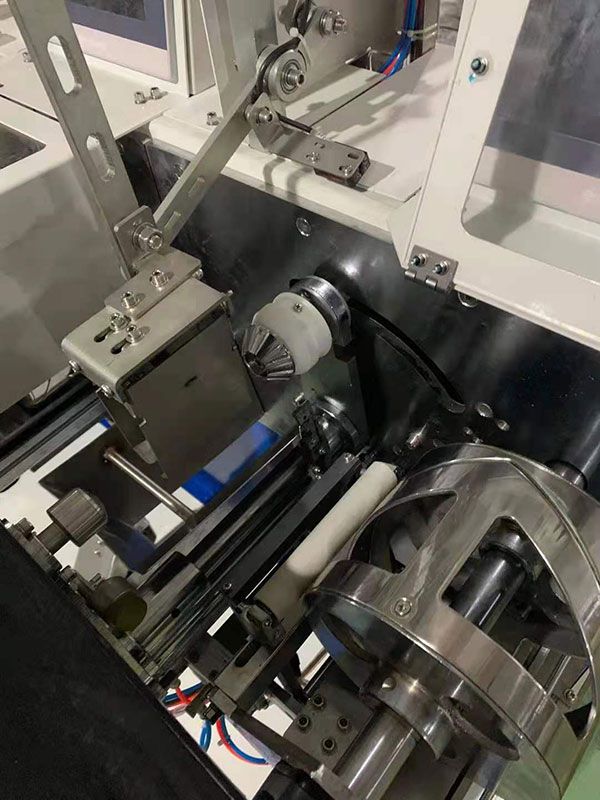

Details
  • Details
  • Details
  • Details
  • Details
